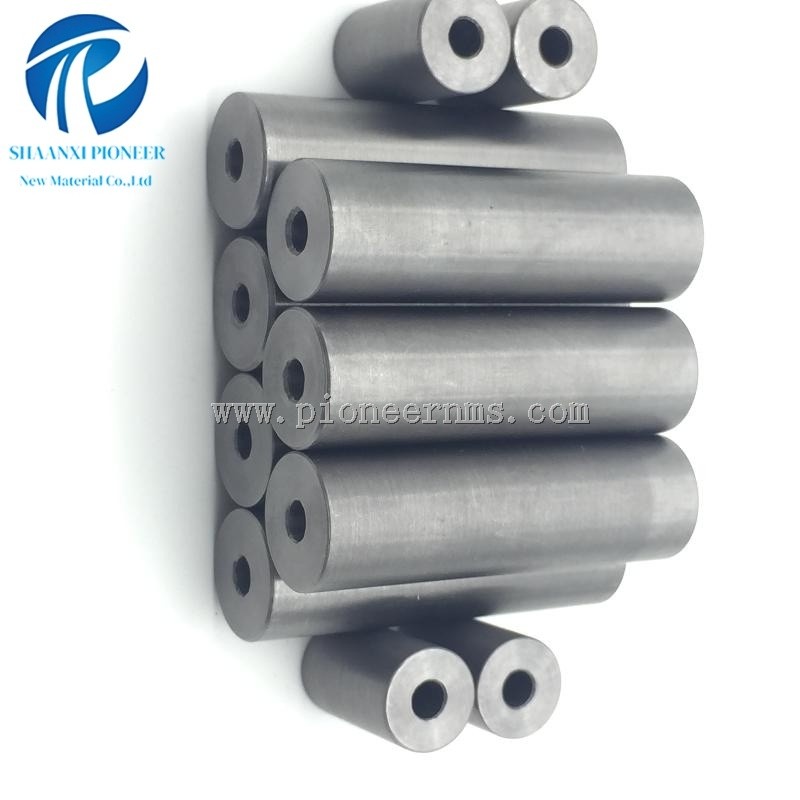

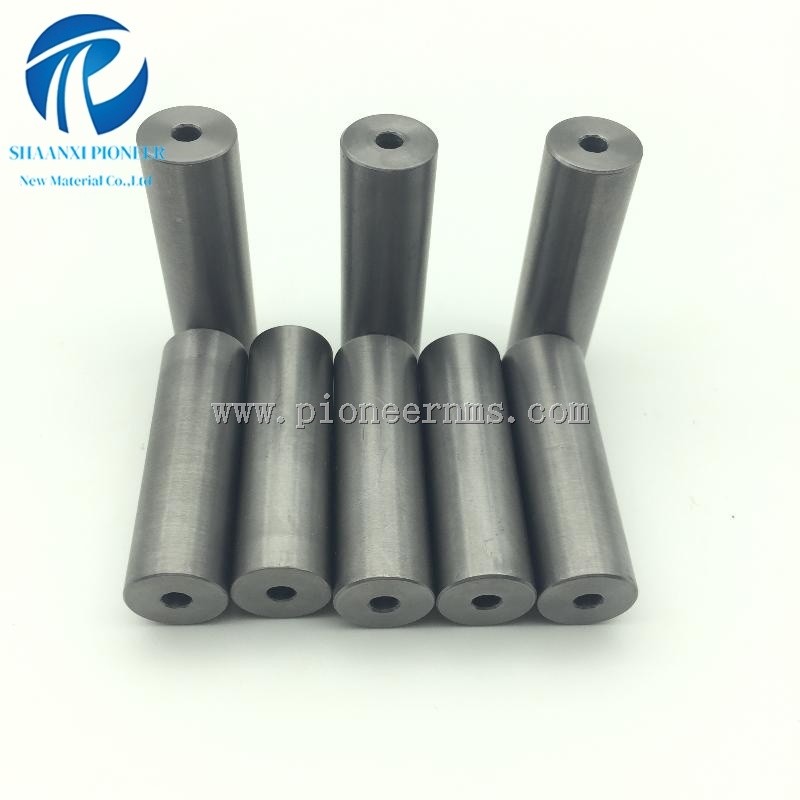

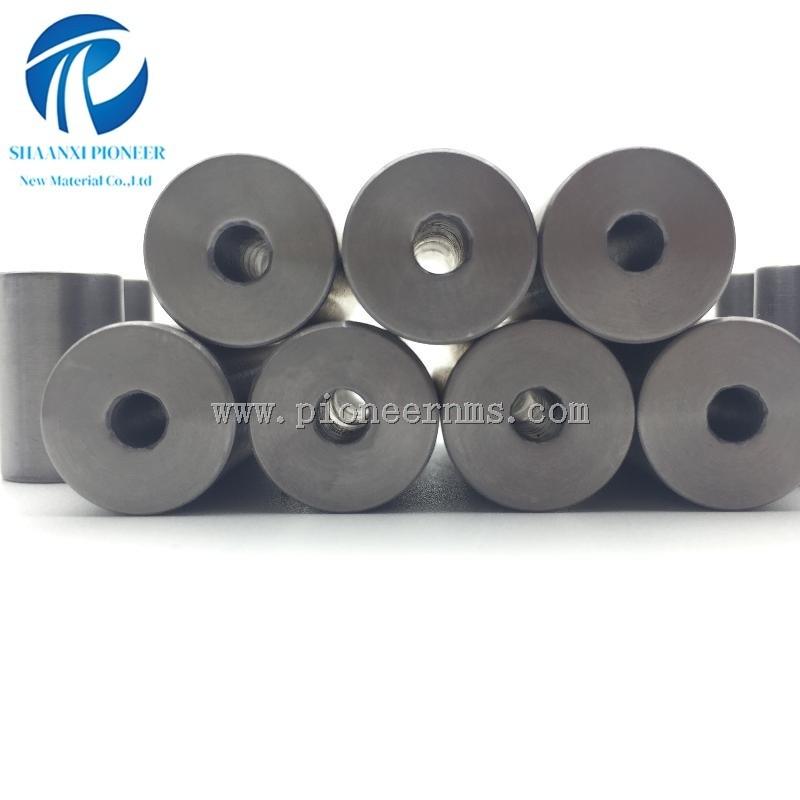

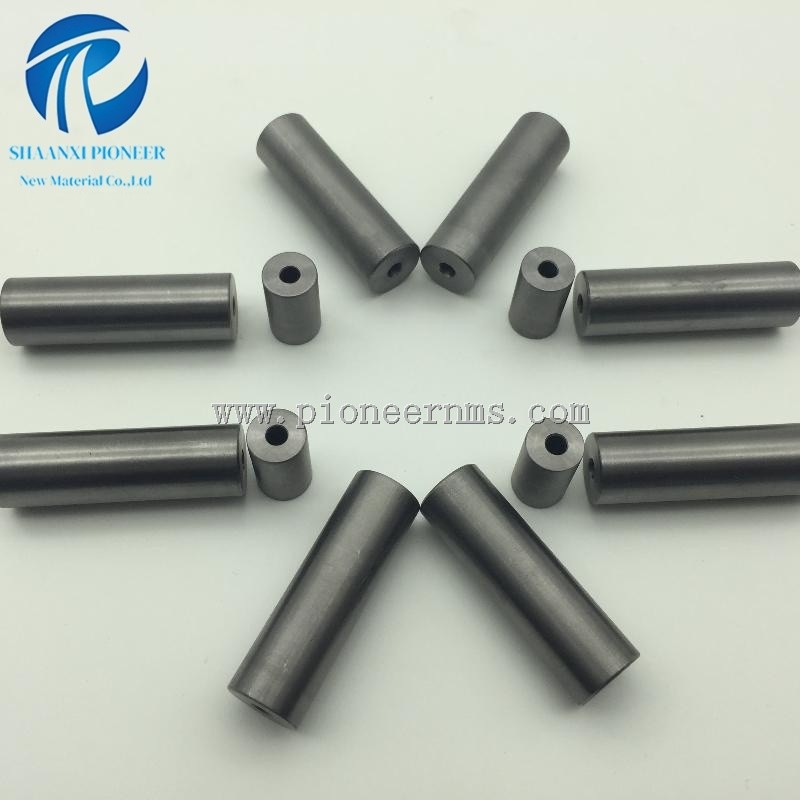

Precision Seamless Tantalum Tube for Thermowells
Precision Seamless Tantalum Tube for Thermowells
Our precision seamless tantalum tubes (Ta1) are engineered for thermowells, thermocouple protection tubes, and corrosion-resistant instrumentation systems used in highly aggressive industrial environments.
Manufactured from high-purity tantalum (≥99.95%), these tubes provide exceptional resistance to strong acids, halogens, and high-temperature process conditions, making them ideal for chemical processing plants, petrochemical facilities, and nuclear instrumentation.
The small diameter and heavy wall construction ensures both installation flexibility and superior mechanical strength, protecting sensitive sensors in reactors, pipelines, and high-pressure process vessels.
Key Features
Excellent Corrosion Resistance
Tantalum is one of the most corrosion-resistant metals available. It performs exceptionally well in environments containing:
-
Hydrochloric acid
-
Sulfuric acid
-
Nitric acid
-
Chlorine and halogens
This makes tantalum tubes ideal for extreme chemical processing environments where stainless steel and nickel alloys fail.
Extreme High-Temperature Capability
With a melting point above 2900°C, tantalum tubes can operate in extreme thermal environments and maintain stability in:
-
Vacuum furnaces
-
Inert atmospheres
-
High-temperature process equipment
Operating temperature can reach up to 2300°C in vacuum conditions.
Small Diameter Heavy Wall Construction
Our tubes are designed for demanding instrument protection applications.
Advantages include:
-
Easy installation in narrow reactor nozzles or pipelines
-
Heavy wall thickness for high pressure resistance
-
Strong protection for thermocouples and RTD sensors
-
Improved durability in turbulent flow environments
High Mechanical Strength
The thick wall design enhances resistance to:
-
Process pressure
-
Fluid vibration
-
Mechanical fatigue
Ensuring long-term stability of temperature measurement systems.
Technical Specifications
Material
Pure Tantalum (Ta1 / Ta2)
Standard
ASTM B365 / GB/T 8182-2008
Purity
≥ 99.95%
Outer Diameter
3 mm – 20 mm
Wall Thickness
1 mm – 5 mm (Heavy Wall)
Length
Up to 5000 mm or custom
Surface Condition
-
Pickled
-
Polished
-
Cleaned surface
Heat Treatment
-
Stress relieved
-
Fully annealed
Typical Applications
Thermowells
Used as thermocouple and RTD protection tubes in:
-
Chemical reactors
-
Distillation columns
-
Acid processing systems
Nuclear Instrumentation
Tantalum tubes are used in specialized nuclear equipment and instrumentation systems requiring high corrosion resistance and structural stability.
Chemical Process Equipment
Common applications include:
-
Dip tubes
-
Spargers
-
Sensor protection sheaths
Where aggressive chemicals would rapidly damage conventional metals.
Manufacturing Process
Our tantalum tubes are produced using advanced manufacturing processes:
-
Precision cold forming
-
Vacuum annealing
-
Strict dimensional inspection
-
Clean surface finishing
This ensures uniform wall thickness, stable mechanical properties, and contamination-free surfaces required in high-precision industrial instrumentation.
Custom Tantalum Tube Manufacturing
We support OEM and custom manufacturing, including:
-
Custom diameter and wall thickness
-
Precision cut-to-length tubes
-
Special surface finishing
-
Customized end processing
FAQ (SEO Ranking Booster)
What is a tantalum thermowell tube used for?
A tantalum thermowell tube is used to protect thermocouples or RTD temperature sensors in highly corrosive chemical environments. The tube acts as a protective barrier between the sensor and the process fluid.
Why is tantalum used for corrosion-resistant tubing?
Tantalum has corrosion resistance similar to glass and is highly resistant to strong acids and aggressive chemicals, making it ideal for chemical processing and instrumentation protection.
What industries use tantalum thermowell tubes?
Common industries include:
-
Chemical processing
-
Petrochemical plants
-
Pharmaceutical manufacturing
-
Nuclear power systems
-
High-temperature vacuum equipment
What sizes are available for tantalum tubes?
Typical sizes include:
Outer diameter: 3 mm – 20 mm
Wall thickness: 1 mm – 5 mm
Custom dimensions are also available.
Can tantalum tubes be customized?
Yes. Manufacturers can provide custom lengths, wall thicknesses, diameters, and end finishes depending on thermowell design and instrumentation requirements.
