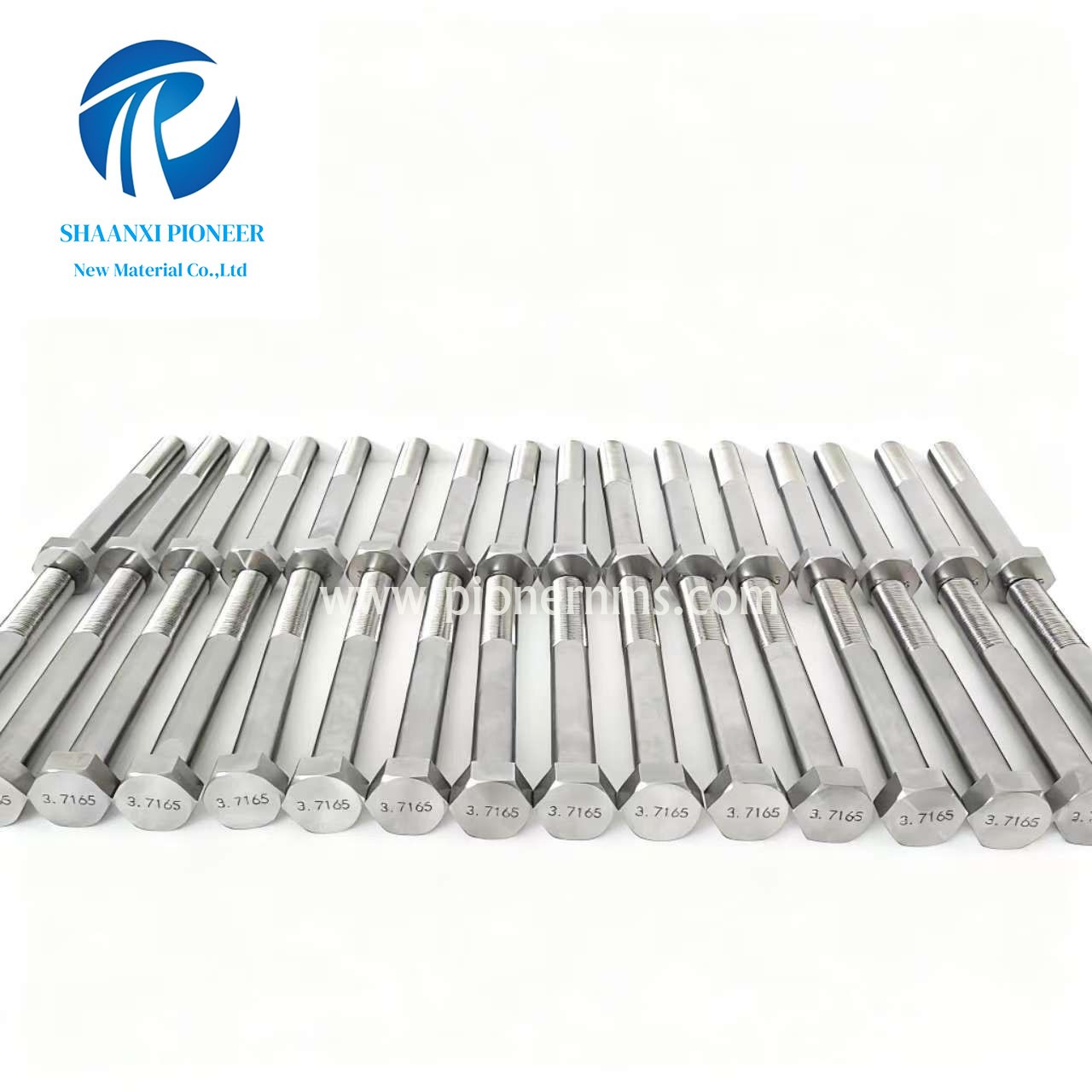

High-Strength Titanium Alloy Screw

Technical Specifications:

• Material Composition: Ti-6Al-4V (Grade 5) alloy containing 6% aluminum, 4% vanadium.

• Standards Met: ASTM F136, AMS 5844, ISO 5832-3 (Medical Grade available upon request).

• Strength Grade: Class 12.9 equivalent and higher.

• Drive Types: Hex Socket (Allen), Phillips, Slotted, Torx®.

• Head Styles: Socket Head Cap, Button Head, Flat Head, Pan Head, Hex Head.

• Available Sizes: M1.6 to M20+; custom lengths and diameters available.

Processing Capabilities:

▸ Precision CNC machining for consistent thread geometry
▸ Heat treatment (solution treatment and aging) for optimal strength
▸ Surface treatment (passivation, anodizing - color options available)
▸ Radiusing and deburring for superior finish

Key Properties:

• High Strength-to-Weight Ratio: Strength comparable to many steels at nearly half the weight.

• Excellent Corrosion Resistance: Exceptional resistance to saltwater, chlorides, and harsh chemicals.

• Biocompatibility: Meets standards for use in medical implants and surgical tools.

• Non-Magnetic: Ideal for sensitive applications in aerospace, medical (MRI), and electronics.

• Good Fatigue Resistance: Performs reliably under dynamic and vibrational loads.

Applications:

• Aerospace: Airframe fastening, engine components, satellite assemblies.

• Medical: Bone screws, orthopedic device assembly, surgical instrument fabrication.

• Marine: Boat fittings, underwater instrumentation, subsea equipment.

• Automotive/Racing: High-performance engine components, lightweight chassis assembly.

• Industrial: Chemical processing equipment, precision instruments, semiconductor manufacturing fixtures.

Why Choose Our Gr5 Titanium Screws?

Our screws are manufactured from certified Grade 5 Titanium alloy, ensuring maximum reliability for critical applications. We offer full traceability and custom processing to meet your exact specifications, from prototype to production volumes.
