Premium Molybdenum Sputtering Targets
Molybdenum Sputtering Targets: High-Performance Thin Film Deposition Solutions
Our high-purity Molybdenum Sputtering Targets are engineered for precision thin film deposition in advanced manufacturing and research applications. As a leading refractory metal specialist, we provide premium quality molybdenum targets that deliver exceptional performance, reliability, and consistency in various physical vapor deposition (PVD) processes.
Technical Specifications
Material Properties
| Property | Specification | Significance for Sputtering |
|---|---|---|
| Purity | 99.95% - 99.999% (3N5 - 5N) | Determines film purity and electrical properties |
| Density | ≥ 99.5% of theoretical density (10.22 g/cm³) | Affects target life, arcing behavior, and deposition rates |
| Grain Size | Fine-grained structure (typically 10-50 μm) | Promotes uniform erosion and consistent deposition rates |
| Crystallographic Orientation | Random or preferred orientation available | Influences film texture and properties |
| Surface Finish | Ra ≤ 0.8 μm (standard), finer finishes available | Critical for bonding to backing plates and minimizing particulate generation |
Standard Products
| Type | Form | Typical Dimensions | Purity | Bonding Options |
|---|---|---|---|---|

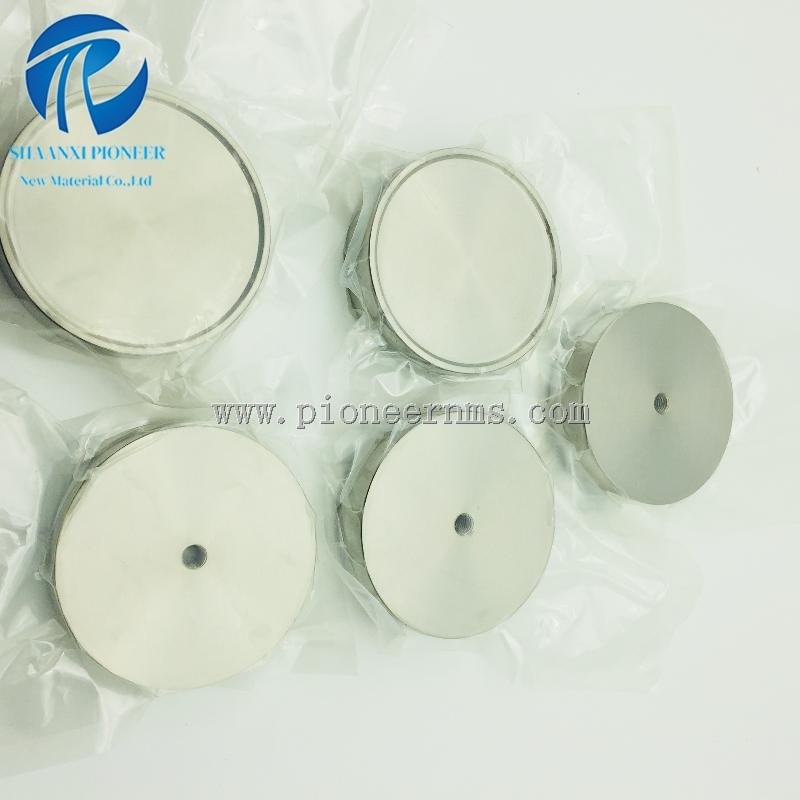

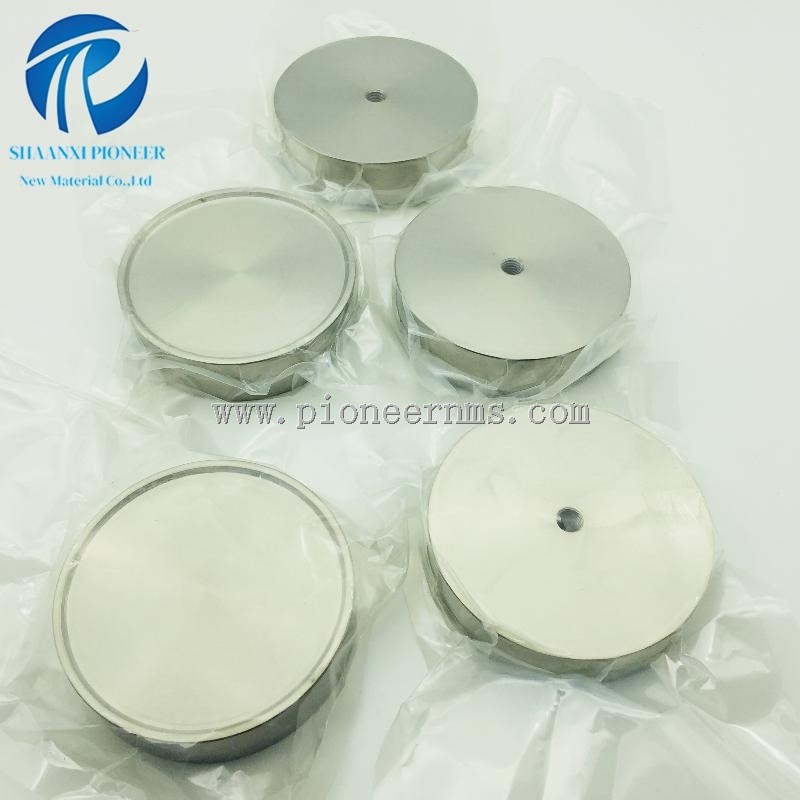

| Planar Targets | Circular, Rectangular | Up to 500mm diameter, thickness 3-12mm | 99.95% - 99.99% | Soldered, brazed, or clamped |
| Rotary Targets | Cylindrical | Length up to 4000mm, diameter 75-200mm | 99.95% - 99.99% | Mechanical clamping systems |
| Special Shapes | Custom geometries | According to chamber design | 99.95% - 99.99% | Custom bonding solutions |
Manufacturing Excellence
1. Material Processing
-
High-Purity Powder: Starting material from certified suppliers with complete traceability
-
Powder Metallurgy: Advanced pressing and sintering techniques for maximum density
-
Thermo-Mechanical Processing: Hot forging, rolling, and annealing for optimal microstructure
-
Precision Machining: CNC machining to exact specifications with minimal surface defects
2. Quality Control
-
Chemical Analysis: GDMS, ICP-MS for trace element detection
-
Metallographic Inspection: Grain structure, porosity, and inclusion assessment
-
Ultrasonic Testing: Detection of internal defects and bonding integrity
-
Surface Quality: White light interferometry for surface roughness measurement
Applications & Industries
Semiconductor & Microelectronics
-
Interconnect Layers: Diffusion barriers and adhesion layers in IC manufacturing
-
Gate Electrodes: Thin films for transistors and memory devices
-
Solar Cells: Back contact layers in CIGS and thin-film photovoltaic cells
-
Flat Panel Displays: Electrode layers in LCD, OLED, and touch panel production
Functional Coatings
-
Tribological Coatings: Wear-resistant layers for cutting tools and mechanical components
-
Optical Coatings: Reflective layers for mirrors and infrared applications
-
Decorative Coatings: Durable metallic finishes for consumer products
-
Protective Coatings: Corrosion-resistant barriers for harsh environments
Advanced Research
-
Superconducting Films: For thin film superconductor research (MoN, MoC)
-
Energy Research: Thin films for battery electrodes and fuel cell components
-
Quantum Materials: Precursor layers for 2D materials like MoS₂
Performance Advantages
1. Superior Thin Film Quality
-
Low Particulate Generation: Minimizes defects in sensitive semiconductor processes
-
Excellent Film Uniformity: Consistent thickness across entire substrate
-
High Deposition Rates: Efficient material utilization and throughput
-
Stable Electrical Properties: Consistent resistivity and work function
2. Operational Efficiency
-
Extended Target Life: Optimized microstructure reduces abnormal erosion
-
Reduced Downtime: Reliable bonding minimizes target failure
-
Process Stability: Consistent performance throughout target lifetime
-
Versatility: Compatible with DC, RF, and pulsed DC sputtering
3. Technical Support
-
Process Optimization: Assistance with parameter optimization for specific applications
-
Failure Analysis: Expert support for troubleshooting deposition issues
-
Custom Design: Engineering support for non-standard target configurations
Customization Capabilities
Material Options
-
Standard Molybdenum: 99.95% purity for most industrial applications
-
High-Purity Molybdenum: 99.99%+ for semiconductor and research applications
-
Doped Molybdenum: Alloyed with specific elements for tailored film properties
-
Recycled Targets: Environmentally responsible option using reclaimed molybdenum
Design Variations
-
Bonding Configuration: Direct bond, solder bond, or mechanical clamping
-
Backing Plate Integration: Copper, aluminum, or stainless steel backing plates
-
Cooling Design: Optimized for high-power applications
-
Shielding Integration: Custom shielding to minimize redeposition
Surface Treatments
-
Polishing: Various surface finishes to meet specific process requirements
-
Cleaning: Ultrasonic cleaning and vacuum packaging for critical applications
-
Passivation: Surface treatments to minimize oxidation during storage
Quality Assurance & Certifications
Testing Protocols
-
Full Traceability: Material certificates with complete production history
-
Lot Consistency: Batch-to-batch consistency through strict process control
-
Performance Validation: Pre-shipment testing for critical parameters
-
Documentation: Comprehensive test reports with all specifications
Industry Compliance
-
Semiconductor Standards: Meets SEMI specifications for critical applications
-
RoHS/REACH: Compliant with environmental regulations
-
ISO 9001: Manufactured under certified quality management systems
-
Customer-Specific Requirements: Tailored testing and documentation packages
Ordering & Support
Lead Times
-
Standard Products: 2-4 weeks
-
Custom Designs: 4-8 weeks (depending on complexity)
