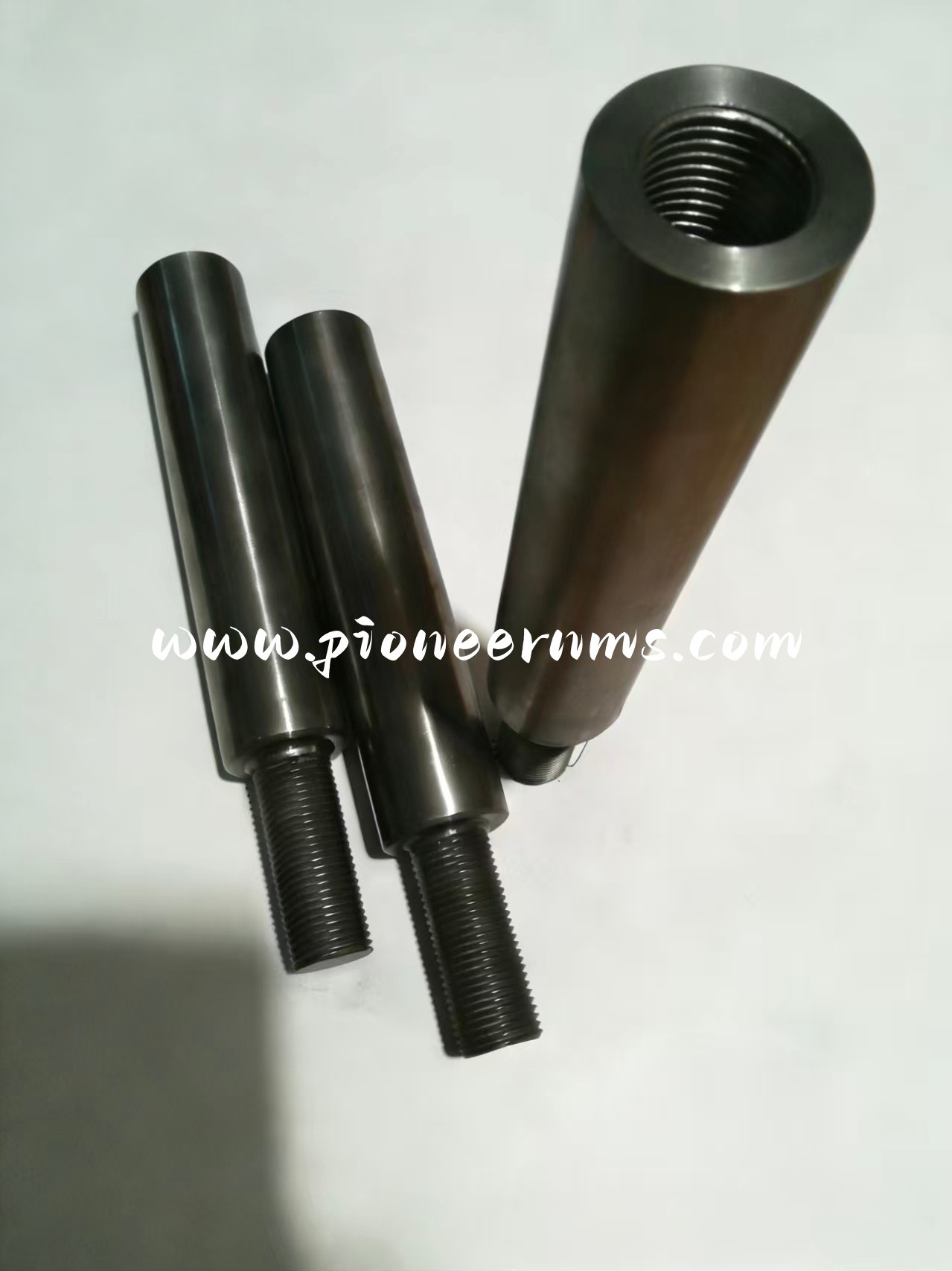

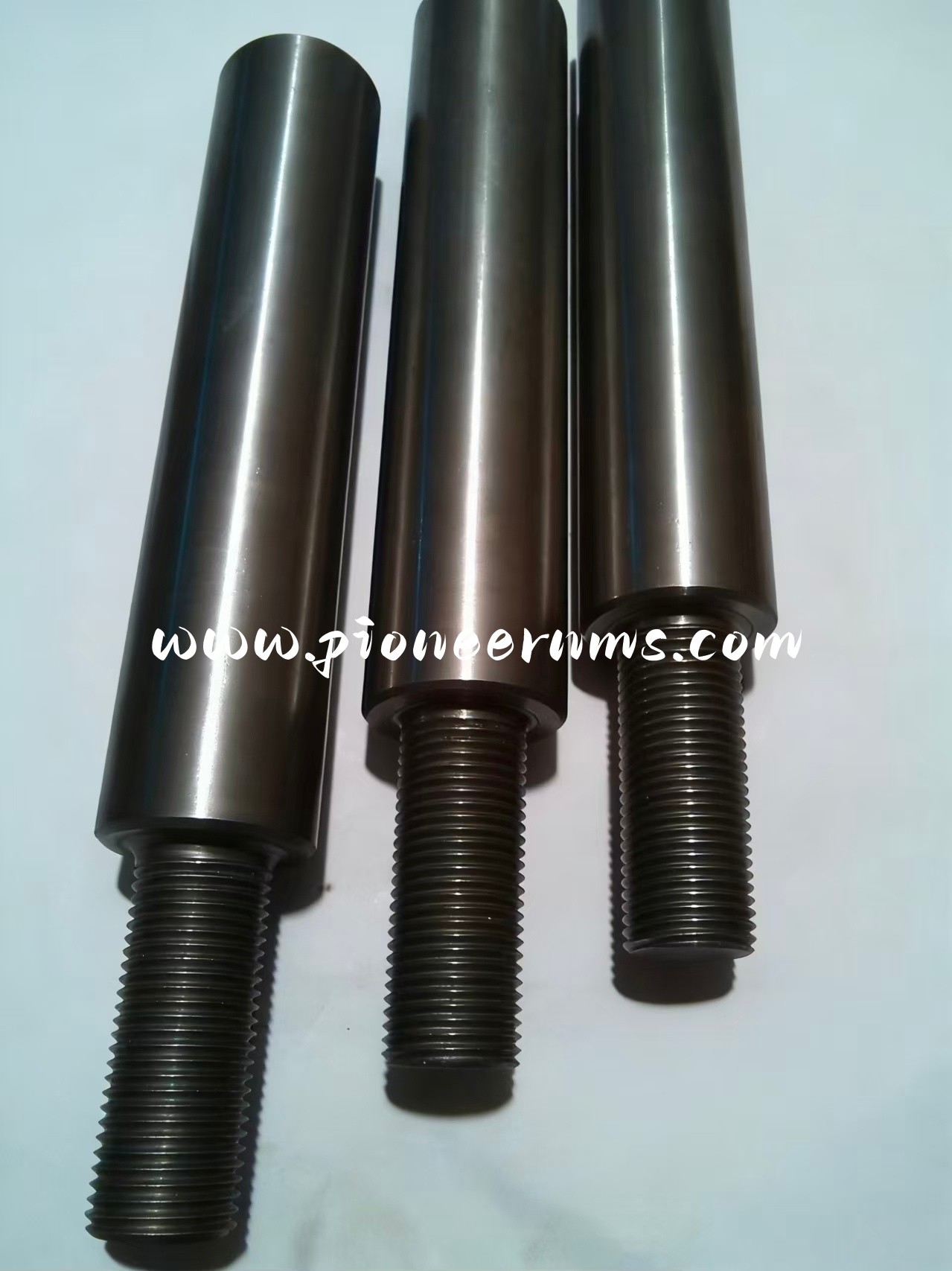

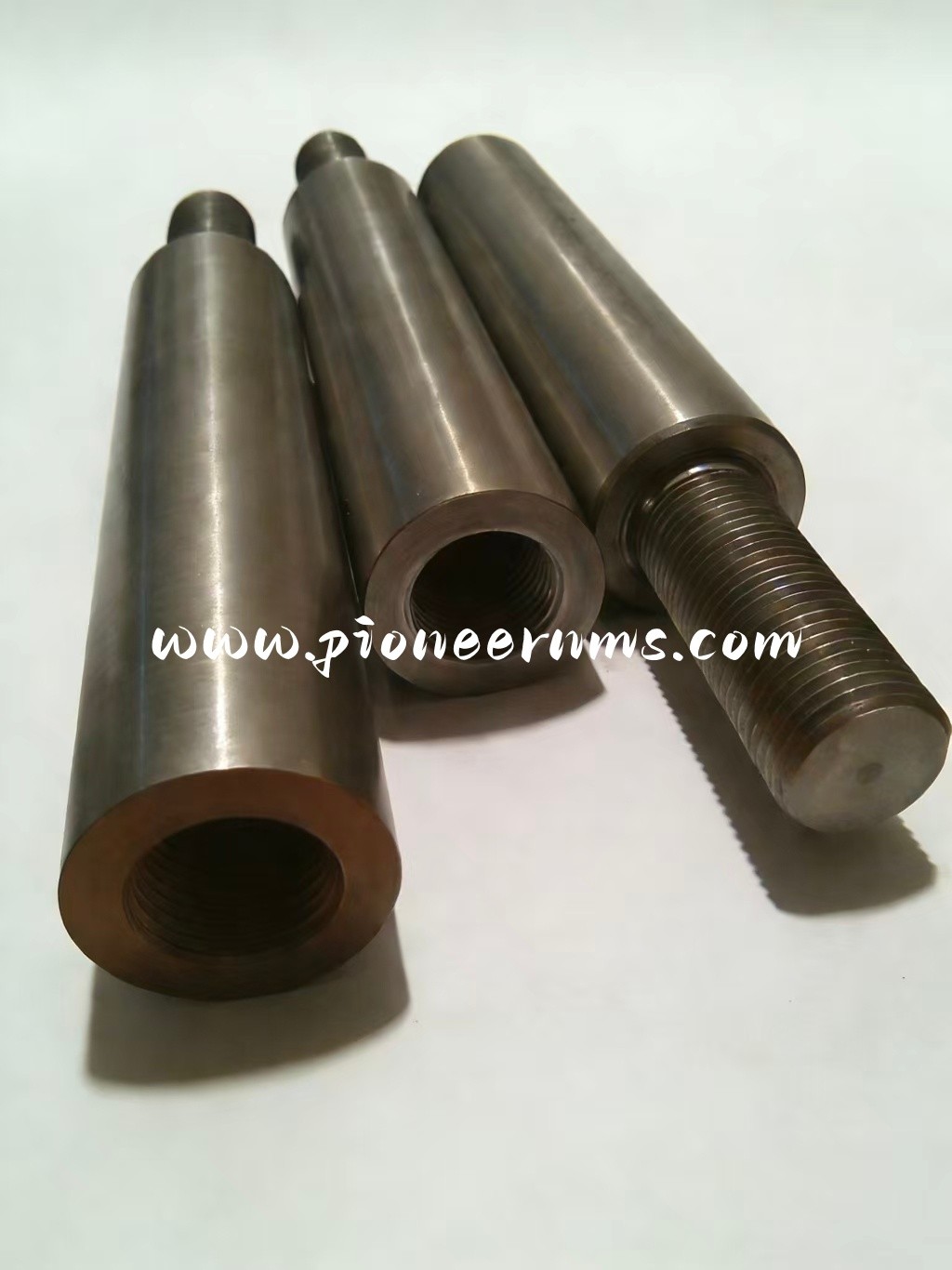

99.95% Molybdenum Threaded Bar electrode for glass melting
In the demanding environment of electric glass melting, electrode reliability is paramount. Our Molybdenum Threaded Bar is precision-engineered to serve as a critical conductive component (electrode holder or electrode itself) in your glass boosting system. Manufactured from high-purity Molybdenum, these threaded rods maintain structural integrity and electrical conductivity at extreme temperatures exceeding 1600°C (2912°F) in a molten glass environment. They are designed to minimize thermal stress and prevent contamination of the glass melt.
1. Key Features & Advantages
-
High-Temperature Stability: Exceptional resistance to thermal shock and creep at high operating temperatures ensures a longer service life and reduced downtime.
-
Excellent Conductivity: Pure Molybdenum provides superior electrical conductivity, ensuring efficient energy transfer for uniform glass melting.
-
Corrosion Resistance: Specifically formulated to withstand the corrosive nature of molten glass, maintaining dimensional stability.
-
Precision Threading: Our threaded bars are machined with tight tolerances (e.g., UNC, UNF, Metric) for secure connections and easy installation with other electrode components.
-
Custom Manufacturing: Available in various diameters (from 10mm to 100mm+) and custom lengths. We also offer Lanthanated Molybdenum (MLa) options for even better recrystallization temperature and creep strength.
2. Technical Specifications
| Property | Value |
|---|---|
| Material | Pure Molybdenum (Mo > 99.95%) / MLa Alloy |
| Density | ≥ 10.2 g/cm³ |
| Melting Point | 2620°C (4748°F) |
| Working Temperature | 1100°C - 1600°C (in inert/reducing atm or glass) |
| Surface Finish | Bright / Ground / Black (Oxidized) |
| Thread Type | Metric, UNC, UNF, or Custom |
| Standard Diameters | 1/2", 3/4", 1", 20mm, 25mm, 32mm, 40mm, 50mm |
3. Applications
-
Electric Glass Melting Forehearth: As electrodes for boosting.
-
Refractory Metal Heating Elements: Connectors and support rods.
-
High-Temperature Furnaces: Structural components and electrodes.
-
Sapphire Growth Furnaces: Electrode systems.
-
Glass Fiber Production: Bushings and electrode holders.
4. Why Choose Us?
We are not just a supplier; we are a partner in high-temperature applications. With over 20 years of experience in refractory metal processing, we ensure:
-
Rigorous Quality Control: 100% Ultrasonic testing and dimensional inspection before shipment.
-
Fast Lead Times: Stock available for standard sizes; fast turnaround for custom orders.
-
Technical Support: Our engineers can assist you in selecting the right alloy and thread design for your specific furnace configuration.
5. Packaging & Shipping
-
Packaging: Sealed in waterproof paper and packed in sturdy plywood cases to prevent damage during transit.
-
Shipping: By air (DHL/FedEx/UPS) for urgent needs, or by sea for bulk orders.
Get a Quick Quote:
Contact us today with your required diameter, thread size, and length. Let us provide the durable solution for your glass melting needs.
