We offers precision machined titanium discs (titanium round plates) in grades Gr1, Gr2, and Gr5 (TC4). Ideal for flanges, gear blanks, valve components, and industrial rotors. Custom diameters and thicknesses available.

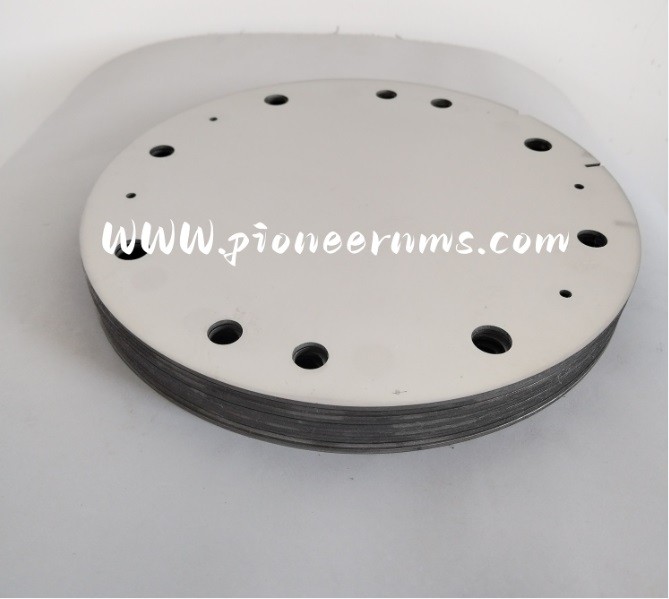

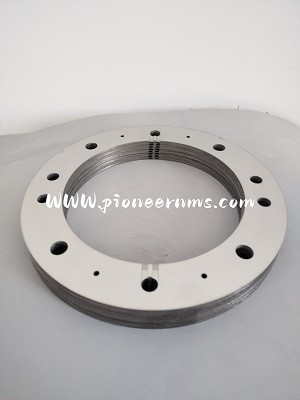

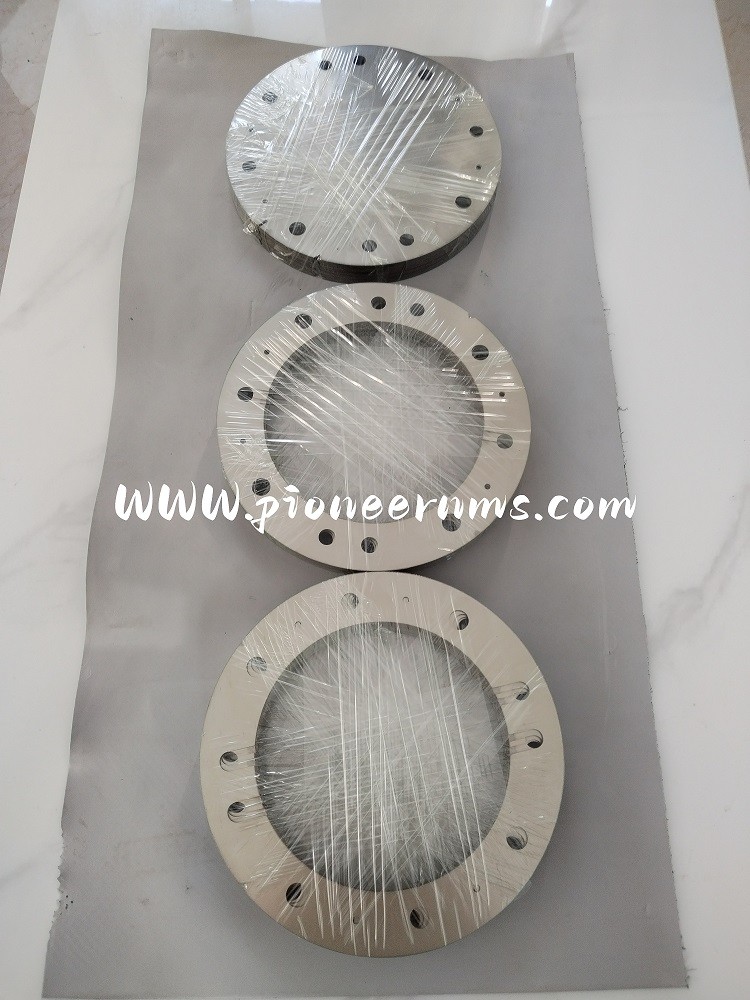

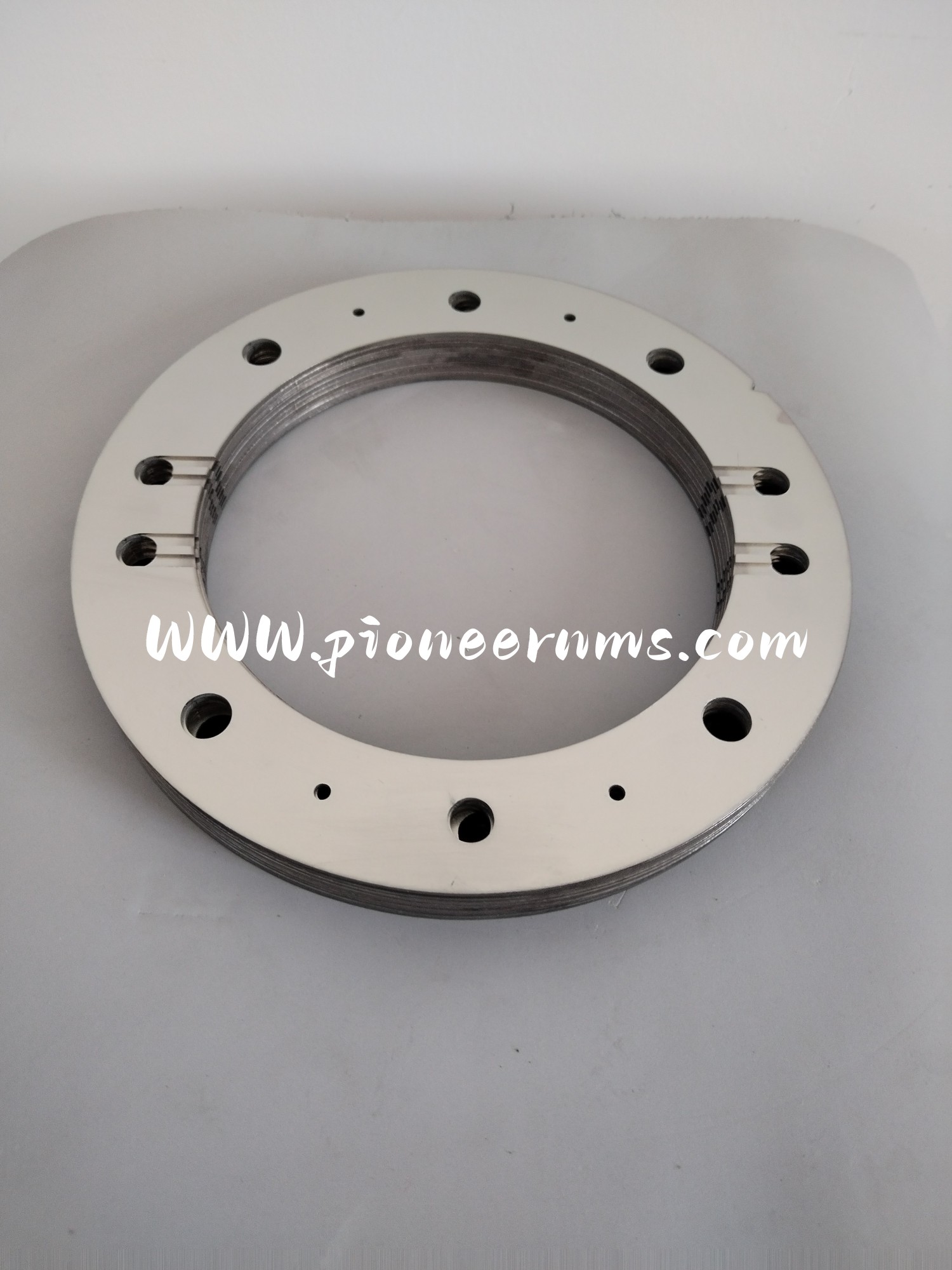

Titanium Discs, also referred to as titanium round plates or titanium slugs, are precision-machined components designed for applications requiring a combination of lightweight properties and high strength. These discs serve as excellent blanks for further machining into flanges, end caps, turbine components, and medical prosthetics.

At Pioneer New Material, we utilize advanced forging and machining techniques to produce titanium discs with tight tolerances and superior metallurgical integrity.

Key Features
Uniform Grain Structure: Forged discs provide enhanced mechanical properties compared to standard plate.

Lightweight & High Strength: Ideal for rotating components where mass reduction is critical.

Corrosion Resistance: Withstands aggressive media, making it perfect for chemical and marine environments.

Precision Tolerances: Surface ground and edge-turned to meet exact specifications.

Specifications
Available Grades: Gr1, Gr2 (Best formability & corrosion resistance)
Alloy Grade: Gr5 (Ti-6Al-4V) (High strength for aerospace & industrial use)
Manufacturing Process: Forging → Annealing → Rough Machining → Finish Machining

Dimensions:
Diameter Range: [e.g., 50mm to 800mm]
Thickness Range: [e.g., 5mm to 200mm]
Tolerance: According to ASTM B381 or as per customer drawing
Surface Finish: As-forged, pickled, or machined
Applicable Standards: ASTM B381, ASTM B348, AMS 4928

Applications
Industrial: Flanges, Blind Flanges, Valve Plates
Mechanical: Gear Blanks, Sprocket Blanks, Wear Plates
Energy: Turbine Discs, Rotor Components
Medical: Hip Cup Blanks, Prosthetic Components (Gr1/Gr2)
Chemical Processing: Reaction Vessel Covers, Sealing Plates

Quality Control
Each titanium disc is inspected for dimensional accuracy and internal soundness.
