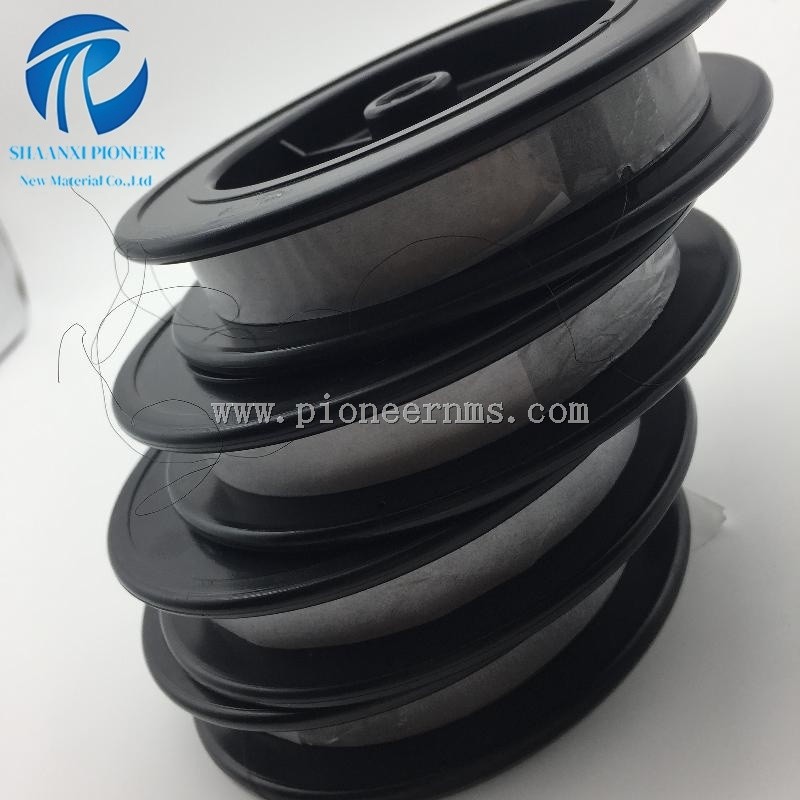

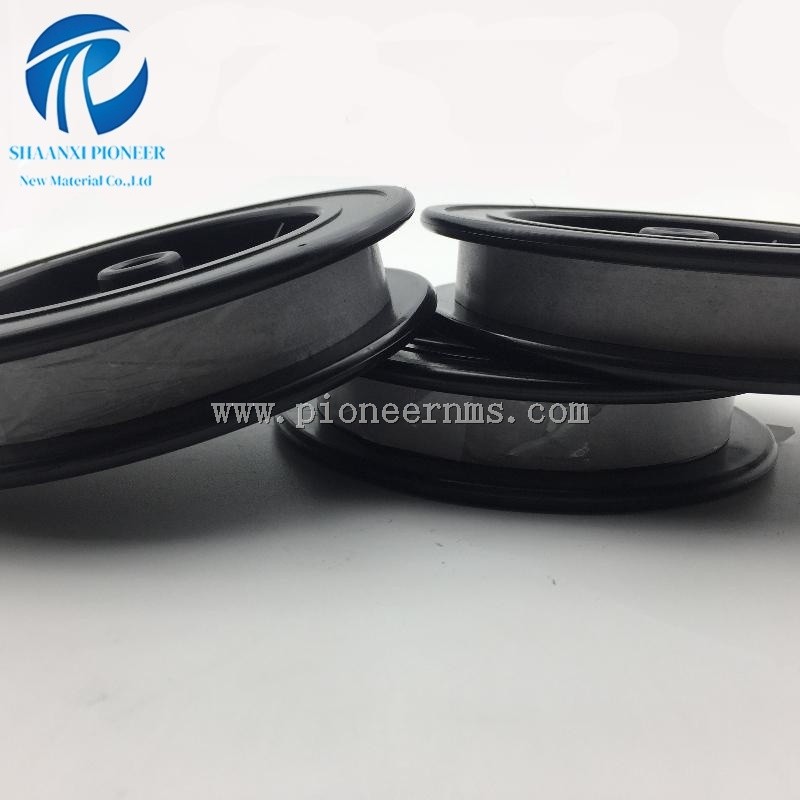

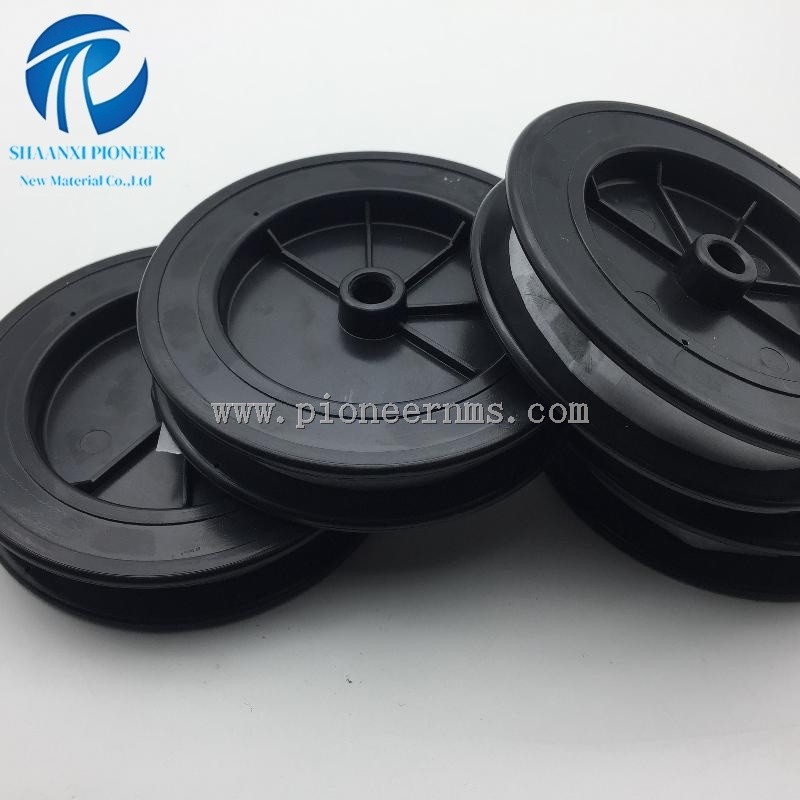

Ø0.05-5.0mm High-Purity Niobium Wire

Technical Specifications:

• Material Grade: 99.95% Pure Niobium (R04200/R04210)

• Diameter Range: Standard Ø0.05mm - Ø5.0mm (Custom Sizes Available)

• Tolerance: ±0.005mm (Precision-Ground to ±0.001mm on Request)

• Surface Finish: Mirror Polish (Ra<0.2μm), Annealed or Hard-Drawn

• Spool Lengths: 100m - 5000m (Custom Cutting Service Available)

Key Properties:
✓ Ultra-High Melting Point (2468°C)
✓ Exceptional Superconducting Performance
✓ Biocompatible (ISO 10993 Certified for Implants)
✓ Corrosion Resistant (HCl/H₂SO₄/Seawater)
✓ Low Thermal Neutron Cross-Section

Industrial Applications:

• Medical: MRI Magnet Windings, Surgical Implants, Dental Devices

• Energy: Superconducting RF Cavities, Fusion Reactor Components

• Electronics: Sputtering Targets, Semiconductor Lead Frames

• Aerospace: Rocket Engine Igniters, Satellite Components
