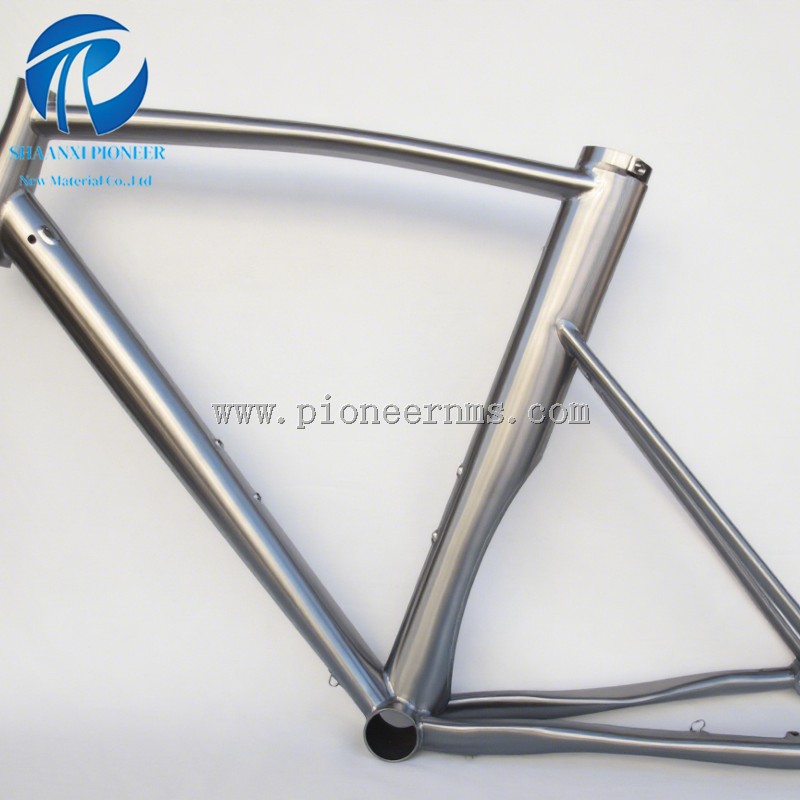

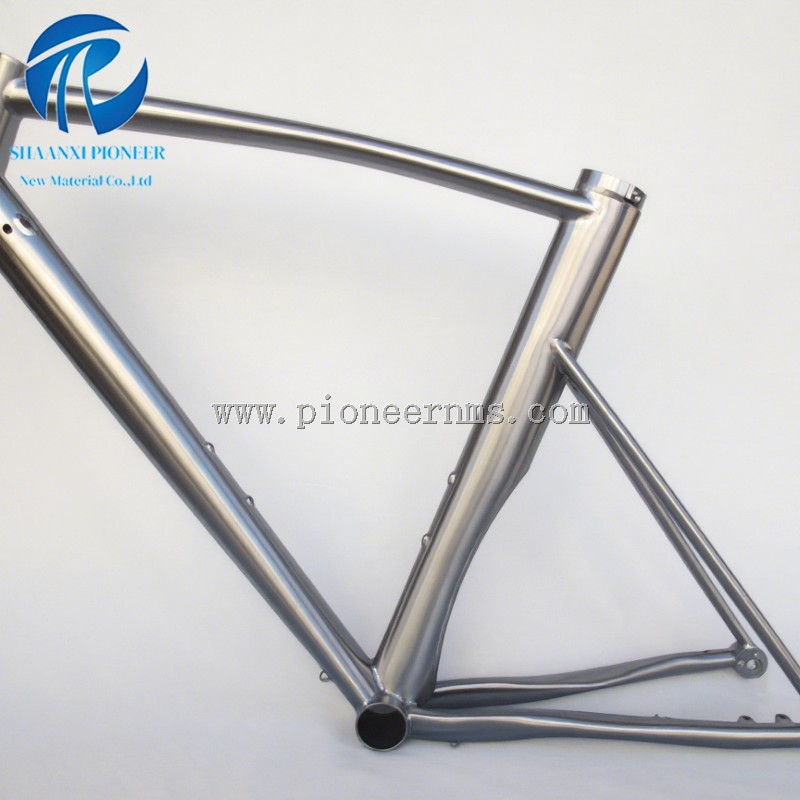

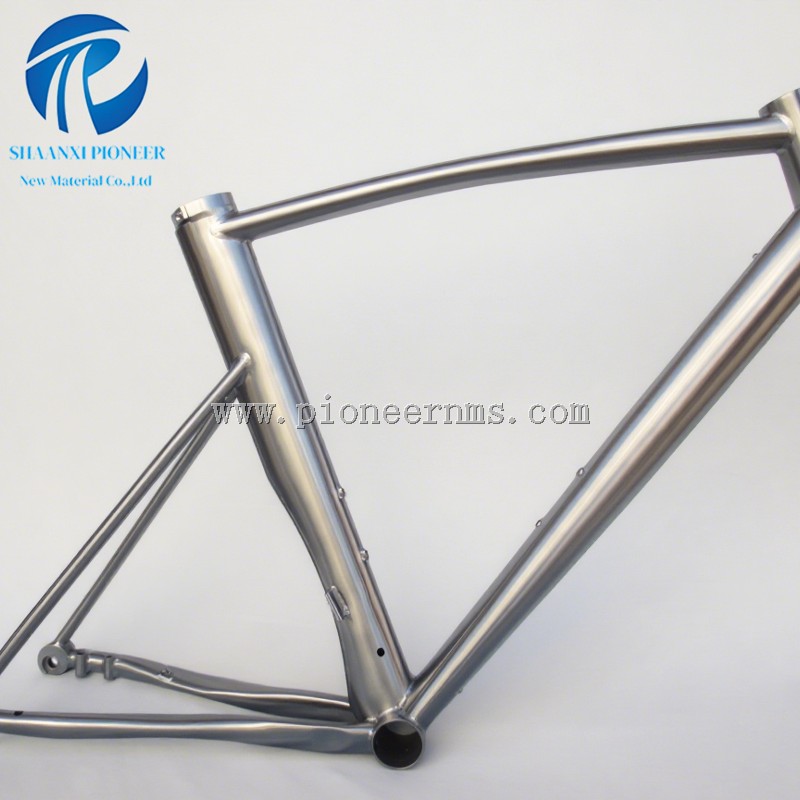

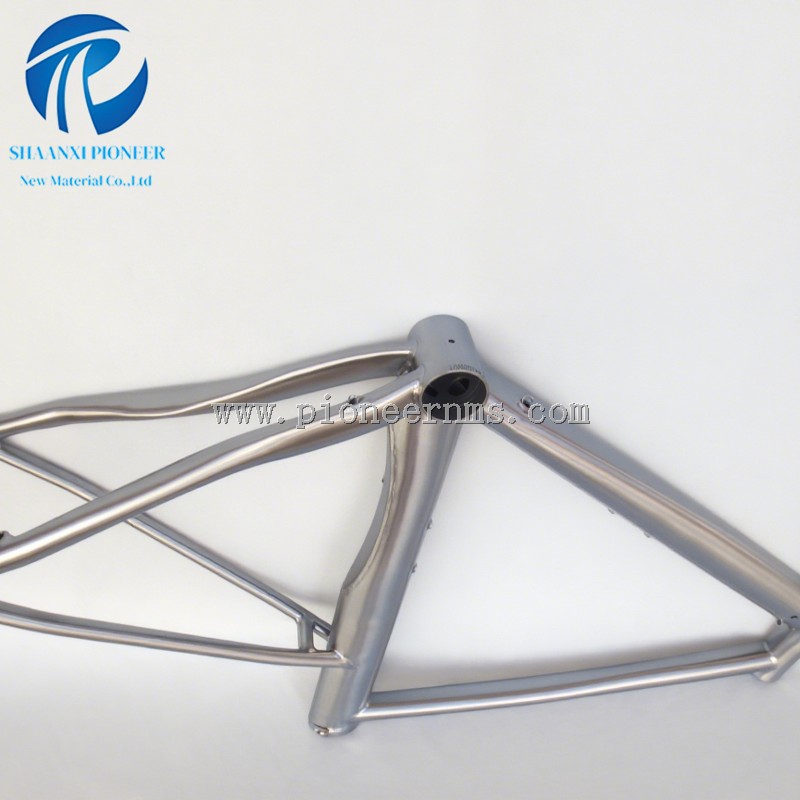

Aero Titanium Bike Frame | Aerospace-Grade Titanium Alloy

Key Advantages

✅ Aerospace-Grade Titanium

• Constructed from Ti6Al4V (GR5) aircraft-grade alloy with 900MPa tensile strength (rivaling carbon fiber)

• Triple-butted tubing (0.7-3mm variable wall thickness), frame weight just 1,200g (54cm)

✅ Aerodynamic Engineering

• Kamm Tail virtual airfoil tubing reduces drag by 15% vs round tubes

• Fully internal cable routing with integrated headtube/chainstay design

✅ Race-Ready Performance

• Bottom bracket stiffness ≥80Nm/° for zero power loss

• Titanium’s natural vibration damping offers 30% more comfort than carbon

✅ Lifetime Durability

• Unpainted finish resists UV/salt corrosion indefinitely

Technical Specifications

▸ Material: Ti6Al4V ELI (medical/surgical grade)
▸ Weight: 1,150-1,400g (frame) / 1,650-1,800g (with fork)
▸ Tube Technology:

• Down tube: 42mm Kamm Tail profile

• Chainstays: 16mm flattened aero design
  ▸ Compatibility:

• Electronic/mechanical groupset ready

• Clears 28mm tires

Who It’s For

• Road Racers: Aero efficiency + titanium compliance

• Gravel Riders: Dirt-proof corrosion resistance

• Endurance Cyclists: All-day comfort without sacrificing speed

• Value Seekers: Lifetime ownership cost beats carbon replacement cycles

Custom Options: Geometry adjustments, laser-etched serials, and custom anodized finishes available.
