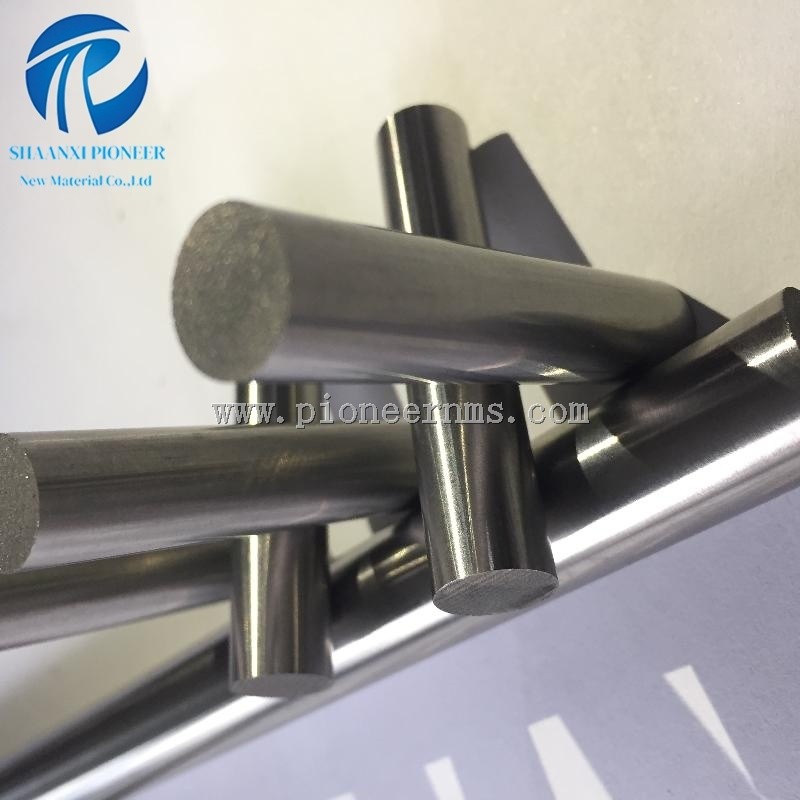

High Corrosion Resistance Titanium Bar

Material Grades

• GR1 (CP Titanium): 99.5% purity, optimal corrosion resistance

• GR5 (Ti-6Al-4V): Aerospace alloy, tensile strength ≥895 MPa

• GR23 (Ti-6Al-4V ELI): Medical grade, ultra-low oxygen (<0.13%)

Standards: ASTM B348, AMS 4928, ISO 5832-3

Dimensional Specifications

• Diameter Range:

  • Round Bars: Ø5mm - Ø300mm

  • Square Bars: 10mm - 150mm

  • Hex Bars: 6mm - 100mm (AF)

• Length: Standard 3m (custom up to 6m)

• Tolerance:

  • Hot-rolled: ±0.5mm

  • Cold-finished: ±0.1mm

Key Properties

✓ Density: 4.51 g/cm³ (43% lighter than steel)
✓ Melting Point: 1668°C (3034°F)
✓ Tensile Strength: 895-930 MPa (GR5)
✓ Corrosion Resistance: Excellent in seawater, chlorides
✓ Biocompatibility: ISO 5832-2/3 compliant (medical)

Industrial Applications

• Aerospace: Landing gear, fasteners, engine mounts

• Medical: Orthopedic rods, dental implants

• Marine: Propeller shafts, subsea components

• Chemical: Pump shafts, valve stems

• Automotive: Connecting rods, suspension parts
