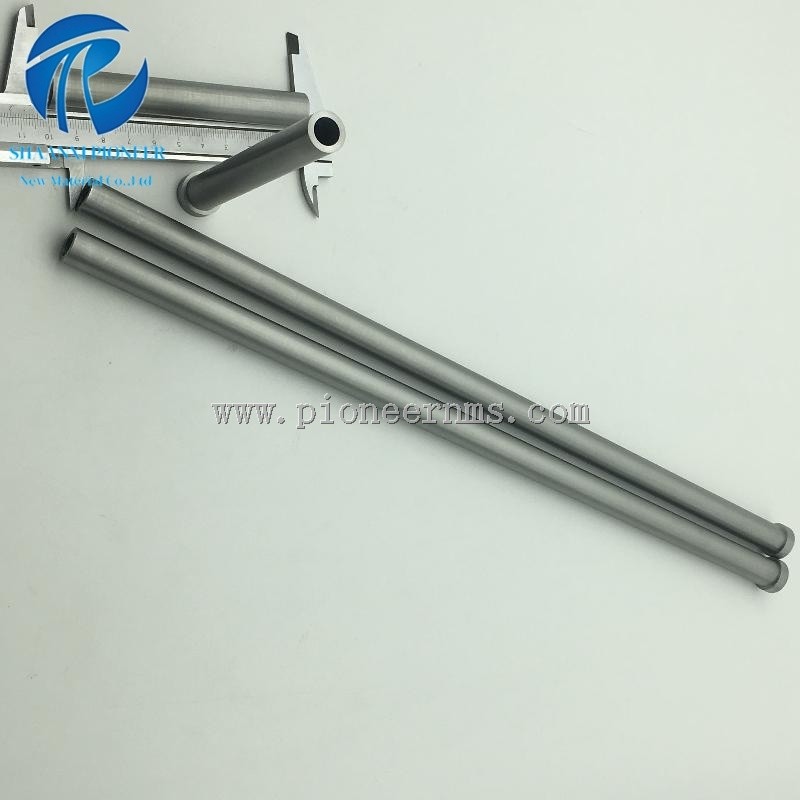

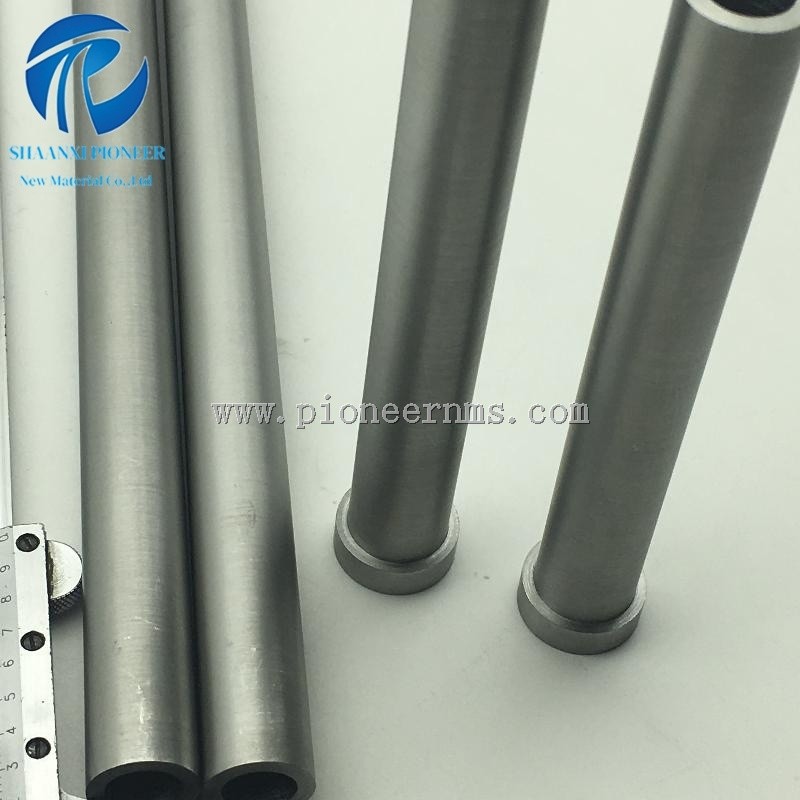

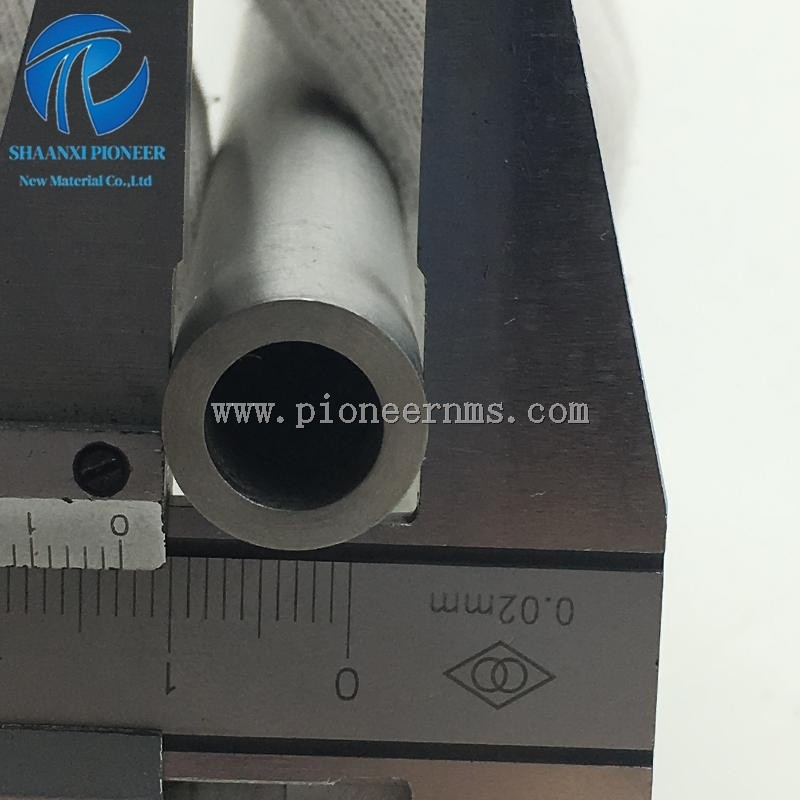

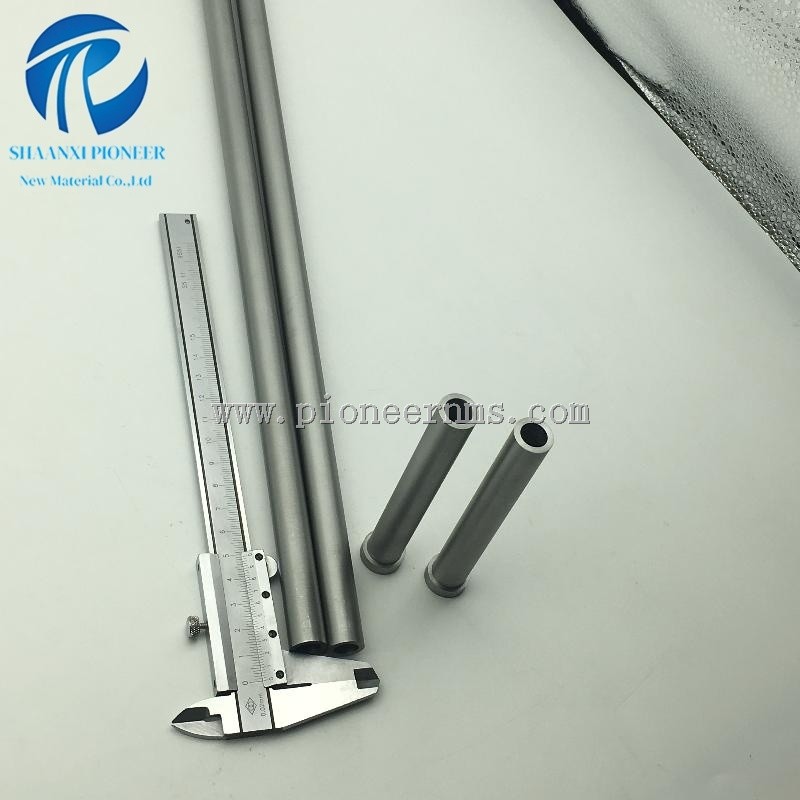

R60702 Zirconium Tube

Material Specifications:

• Grades Available:
  • R60702 (Zr702) - 99.2% Zr, optimal corrosion resistance
  • R60705 (Zr705) - Zr-2.5Nb alloy, enhanced strength
  • R60804 (Zr-4) - Nuclear grade with Sn/Fe/Cr

Dimensional Range:

• Outer Diameter: 10mm - 300mm (custom to 500mm)

• Wall Thickness: 1mm - 20mm (explosion-clad to 50mm)

• Length: Up to 12m (custom cuts available)

• Tolerance: OD ±0.1%, WT ±5% (tighter tolerances available)

Key Properties:
✓ Melting point: 1852°C (3366°F)
✓ Density: 6.51 g/cm³
✓ Thermal neutron absorption: 0.18 barns
✓ Excellent corrosion resistance (HCl, H₂SO₄, seawater)
✓ Biocompatible (ISO 10993 certified)

Industrial Applications:

• Nuclear: Fuel cladding, reactor coolant pipes

• Chemical: Acid transfer lines, heat exchangers

• Medical: Implantable fluid channels

• Marine: Desalination plant piping

• Energy: Molten salt reactor components
