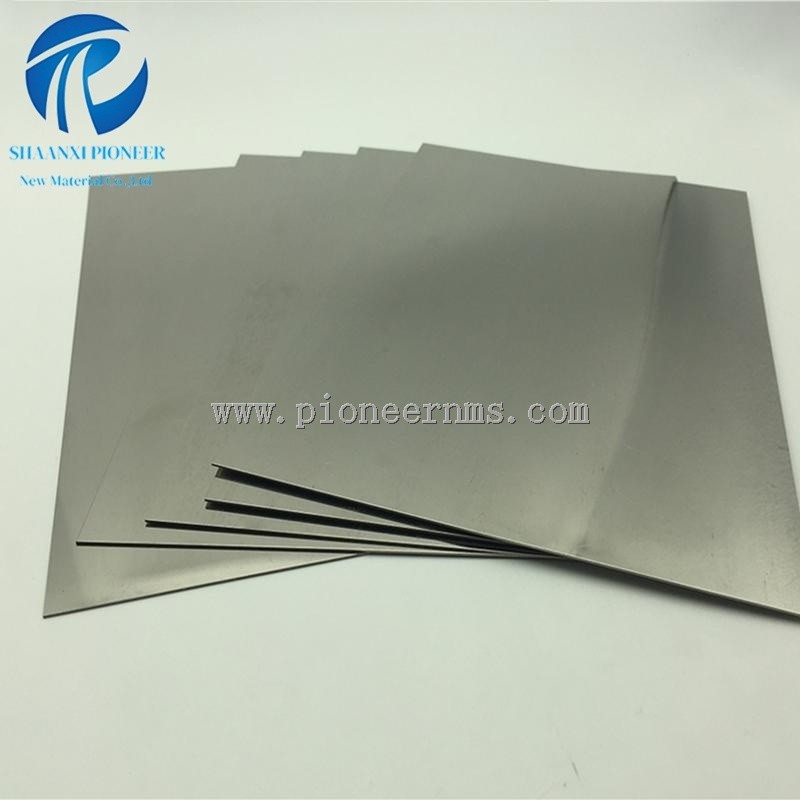

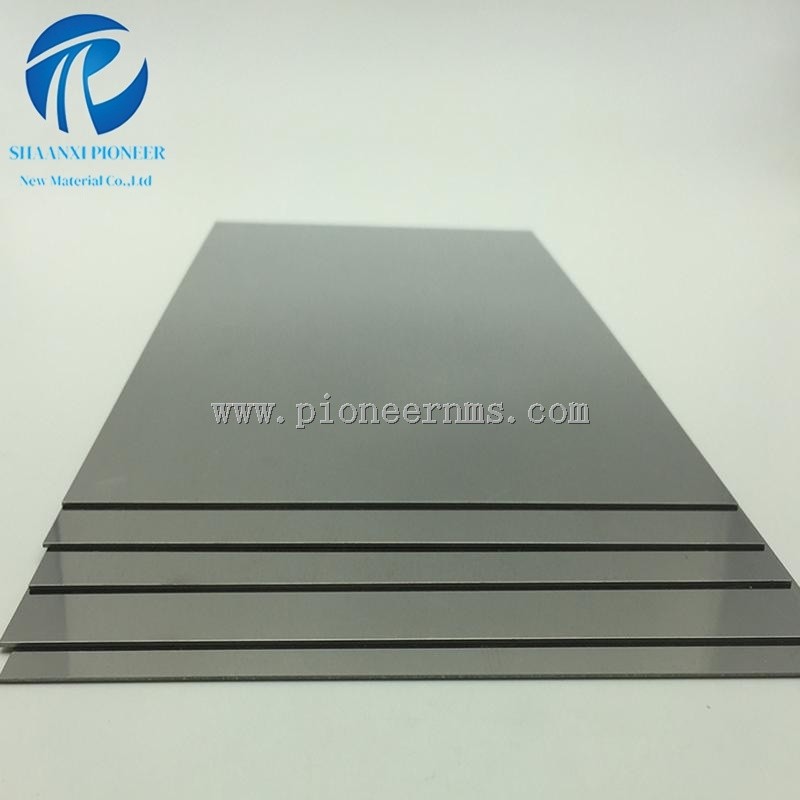

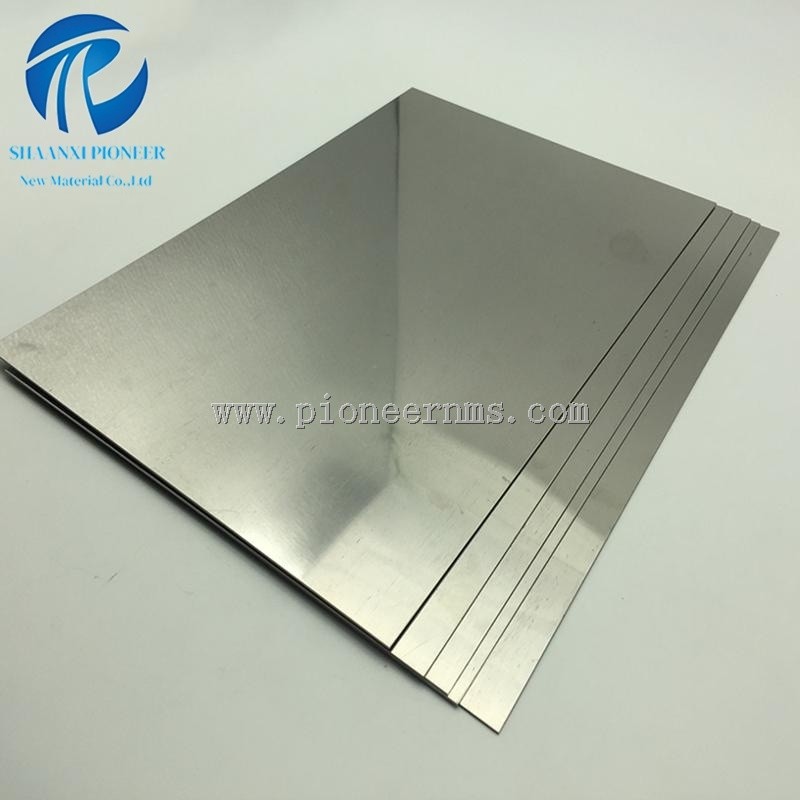

Gr5 Titanium Plate

Technical Specifications:

• Material Composition: Ti-6Al-4V (Grade 5) alloy containing 6% aluminum, 4% vanadium

• Thickness Range: 1mm - 100mm (standard), up to 150mm (custom)

• Standard Sizes: 1000mm x 2000mm (standard), custom sizes available

• Tolerance: ±0.1mm (precision ground), ±0.5mm (hot rolled)

Processing Capabilities:
▸ Precision waterjet/laser cutting
▸ CNC machining (milling, drilling)
▸ Forming and bending services
▸ Welding (TIG, laser, electron beam)
▸ Heat treatment (annealing, aging)

Applications:

• Aerospace: Airframe components, engine mounts, landing gear

• Medical: Orthopedic implants, surgical instruments

• Marine: Propeller shafts, subsea hardware

• Industrial: Chemical reactors, heat exchangers

• Defense: Armor plating, missile components
