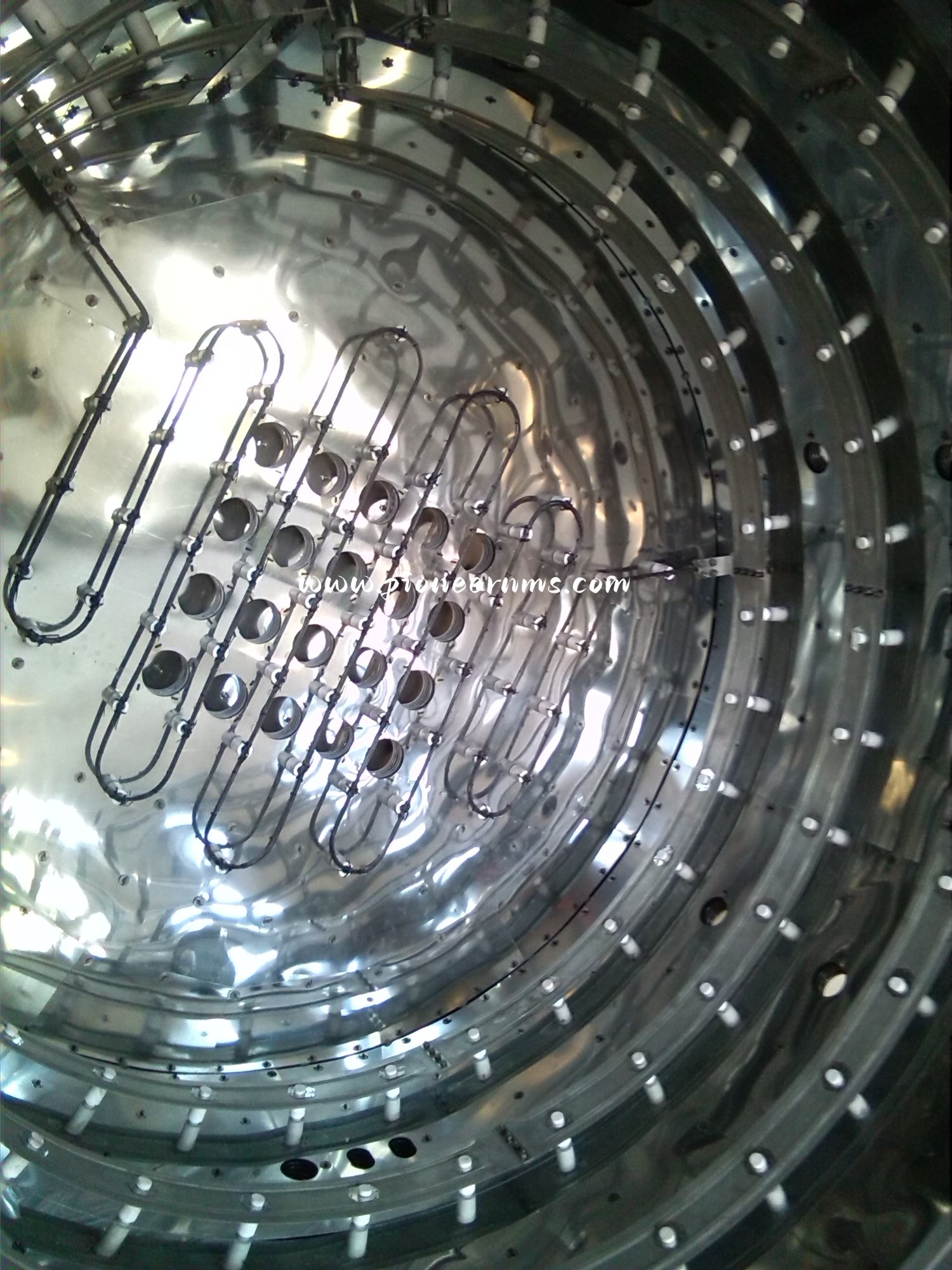

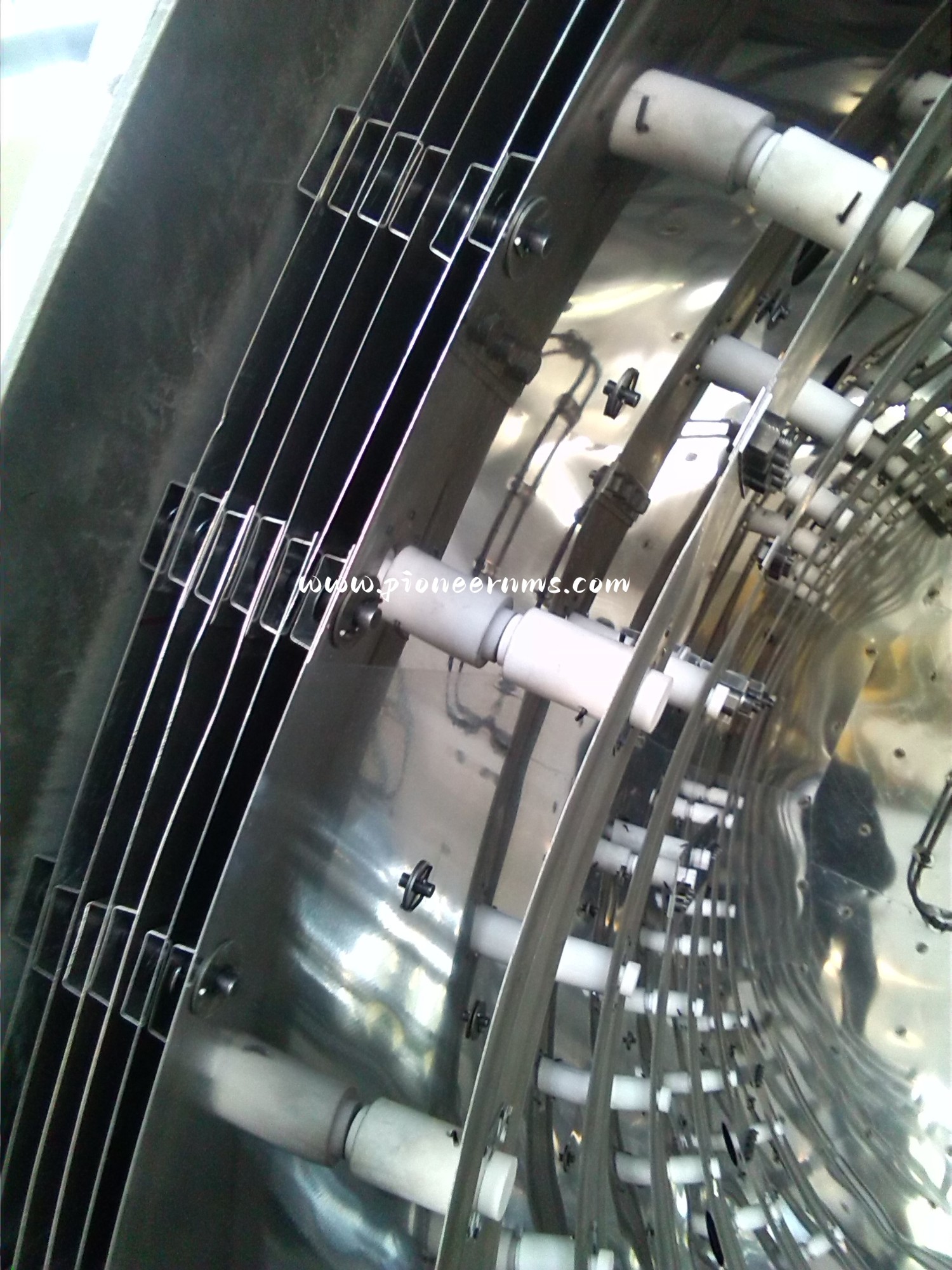

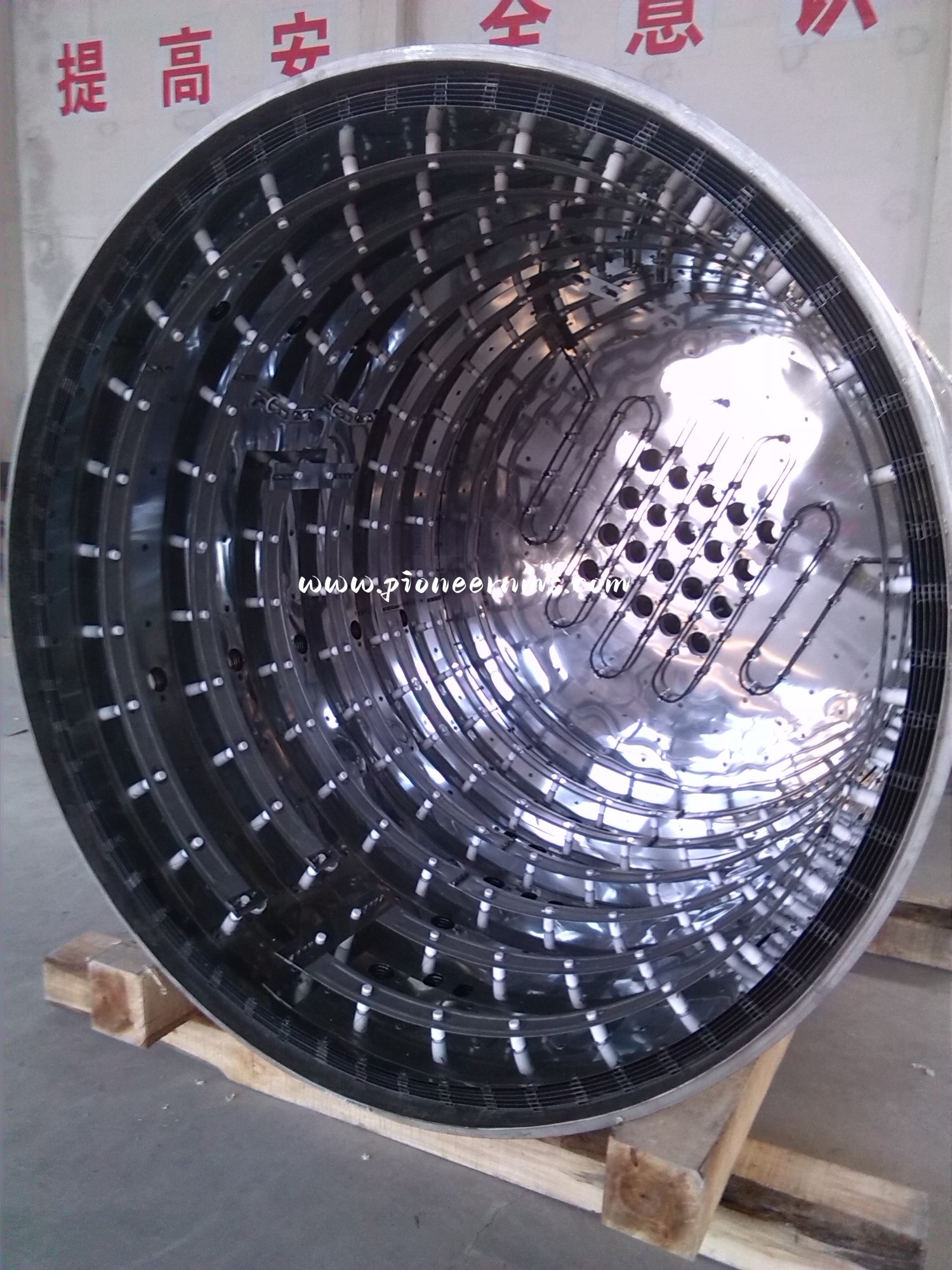

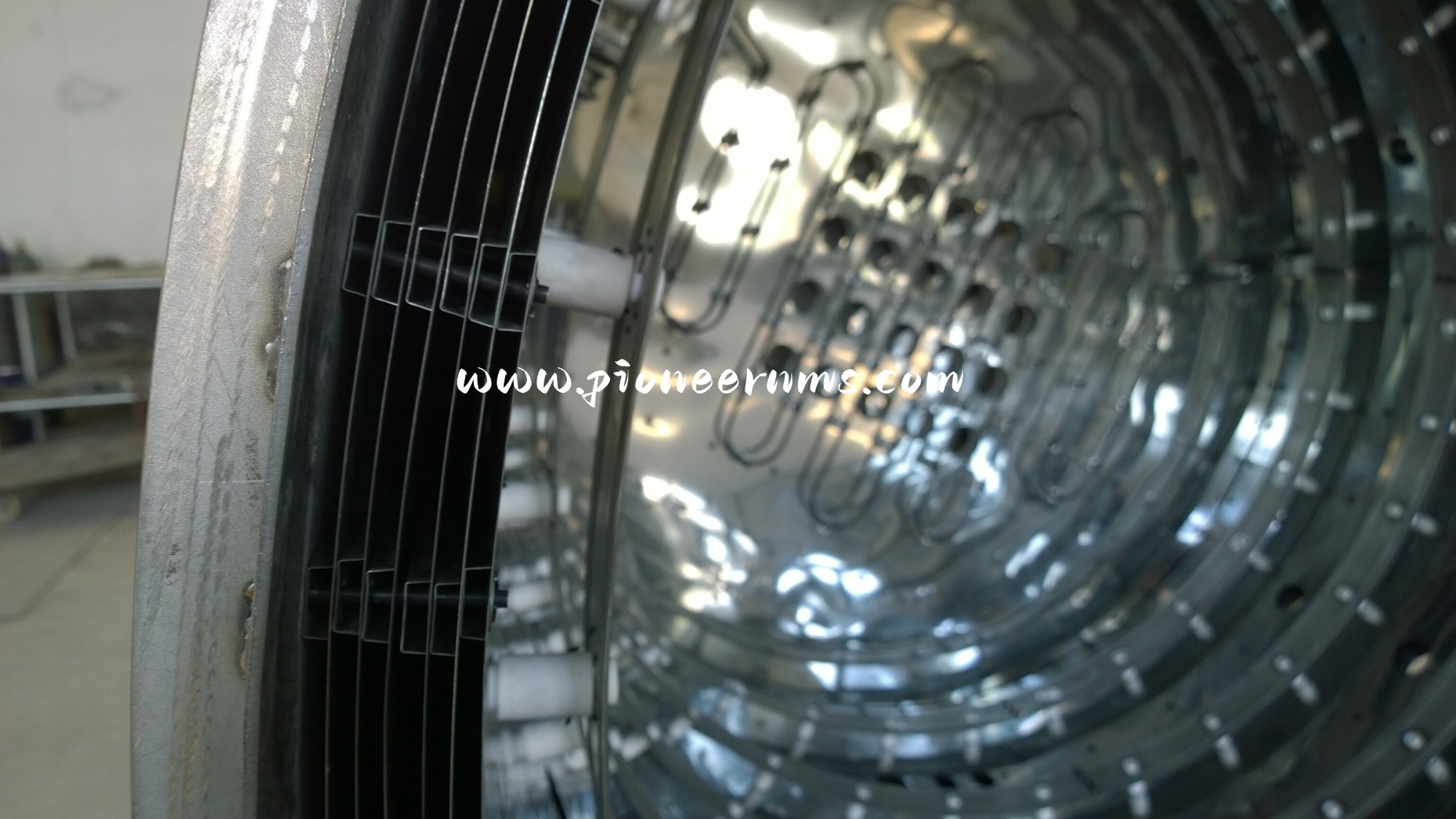

Molybdenum Heating Zone for Vacuum Furnaces
Molybdenum Hot Zone Assembly for Vacuum Heat Treatment Furnaces
Our Molybdenum Hot Zone Assembly is engineered for high-temperature vacuum furnaces, delivering excellent thermal stability, low vapor pressure, and long service life.
Designed for demanding applications such as vacuum heat treatment, semiconductor processing, and crystal growth, this hot zone ensures consistent temperature uniformity and reliable performance under extreme conditions.
Product Overview
The Molybdenum Hot Zone Assembly is a critical internal component of vacuum furnaces, responsible for thermal insulation, heat containment, and structural stability at temperatures exceeding 1600–2200°C.
Manufactured from high-purity molybdenum and precision-fabricated using advanced forming and Electron Beam Welding (EBW) processes, our hot zones are optimized for high vacuum environments, minimizing contamination while maximizing operational lifespan.
This product is suitable for both new furnace systems and replacement or upgrade of existing hot zones, helping customers improve furnace efficiency and reduce total operating costs.
Key Features & Advantages
-
High-Purity Molybdenum Material
Ensures low vapor pressure, excellent thermal conductivity, and superior resistance to deformation at high temperatures. -
Excellent Performance in High Vacuum
Ideal for ultra-high vacuum and inert gas atmospheres without outgassing or contamination risks. -
Outstanding Thermal Stability
Maintains uniform temperature distribution across the heating zone. -
Long Service Life
Reduced oxidation and creep compared to conventional materials, lowering replacement frequency. -
Custom Engineering Available
Dimensions, configurations, and assemblies can be tailored to specific furnace designs.
Typical Applications
-
Vacuum heat treatment furnaces
-
Semiconductor diffusion and annealing furnaces
-
Single crystal growth furnaces (CZ / directional solidification)
-
High-temperature sintering furnaces
-
Aerospace and advanced materials thermal processing
-
Research and laboratory vacuum furnaces
Available Components
Our molybdenum hot zone assemblies may include:
-
Molybdenum heating shields
-
Radiation shields and insulation layers
-
Structural frames and supports
-
Connectors, fasteners, and welded sub-assemblies
-
Custom hot zone configurations based on drawings
Technical Specifications (Typical)
| Item | Specification |
|---|---|
| Material | High-purity Molybdenum (Mo ≥ 99.95%) |
| Max Working Temperature | Up to 2200°C (vacuum/inert gas) |
| Furnace Type | Vacuum / Inert atmosphere furnaces |
| Fabrication | Machining, forming, EBW welding |
| Surface Finish | Machined / Cleaned / As required |
| Customization | Available based on drawings |
Note: Final specifications depend on furnace design and operating conditions.
Why Choose Our Molybdenum Hot Zone
-
Direct molybdenum manufacturer, ensuring material consistency
-
Strong experience supporting vacuum furnace and equipment manufacturers
-
Flexible production for OEM, replacement, and customized projects
-
Reliable quality control from raw material to finished assembly
-
Competitive cost with stable long-term supply capability
Customization & OEM Support
We provide full support for custom molybdenum hot zone solutions, including:
-
Design optimization based on furnace temperature profile
-
Material selection for specific atmospheres
-
EBW-welded assemblies for complex structures
-
Small-batch R&D support and mass production
Feel free to contact us with drawings or technical requirements.
Call to Action
Contact us today to discuss your vacuum furnace hot zone requirements or request a quotation.
Our engineering team will respond within 24 hours.
