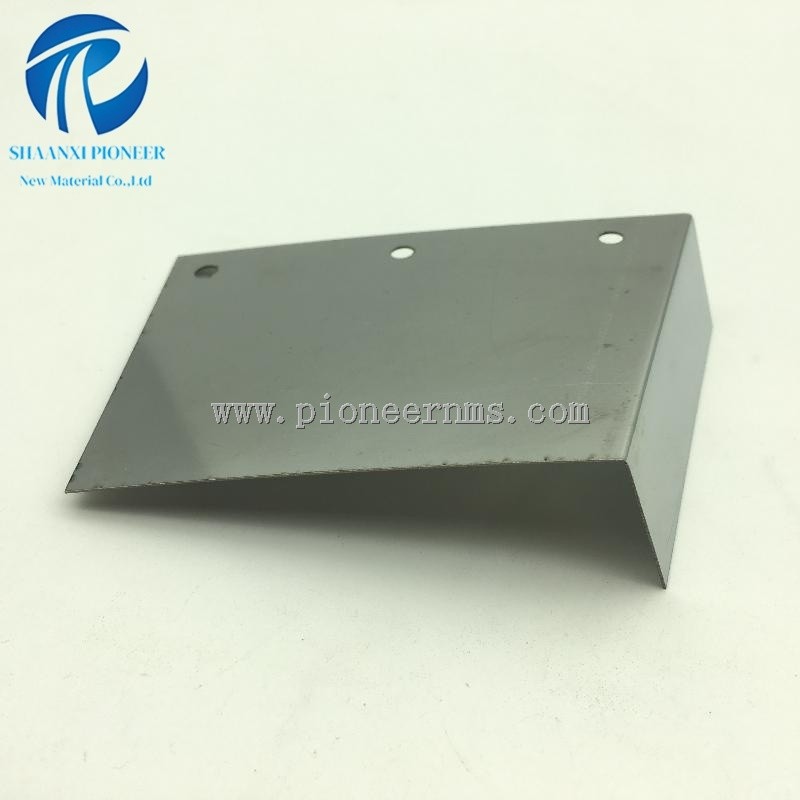

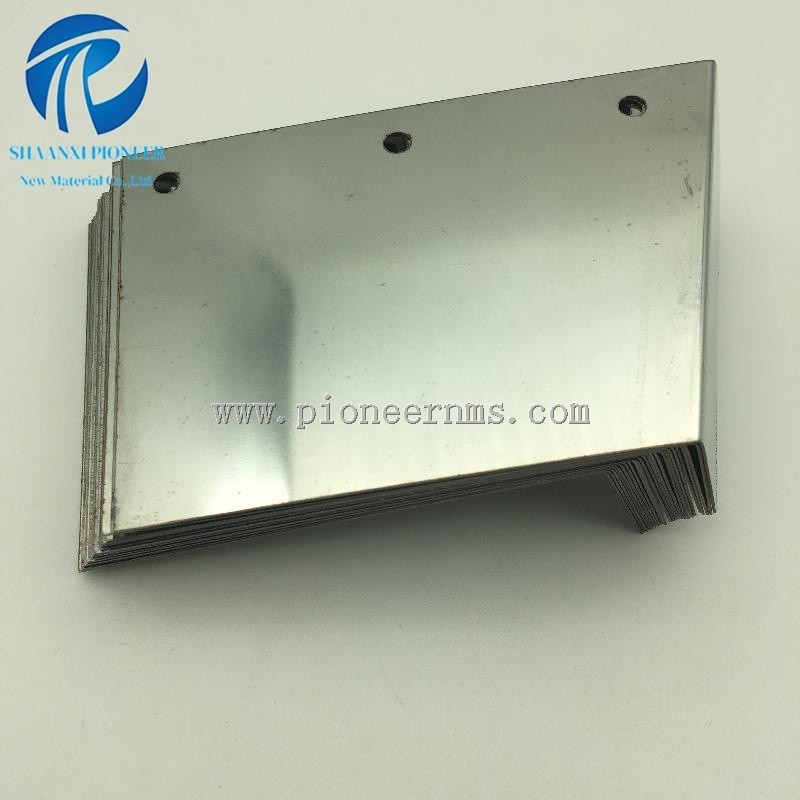

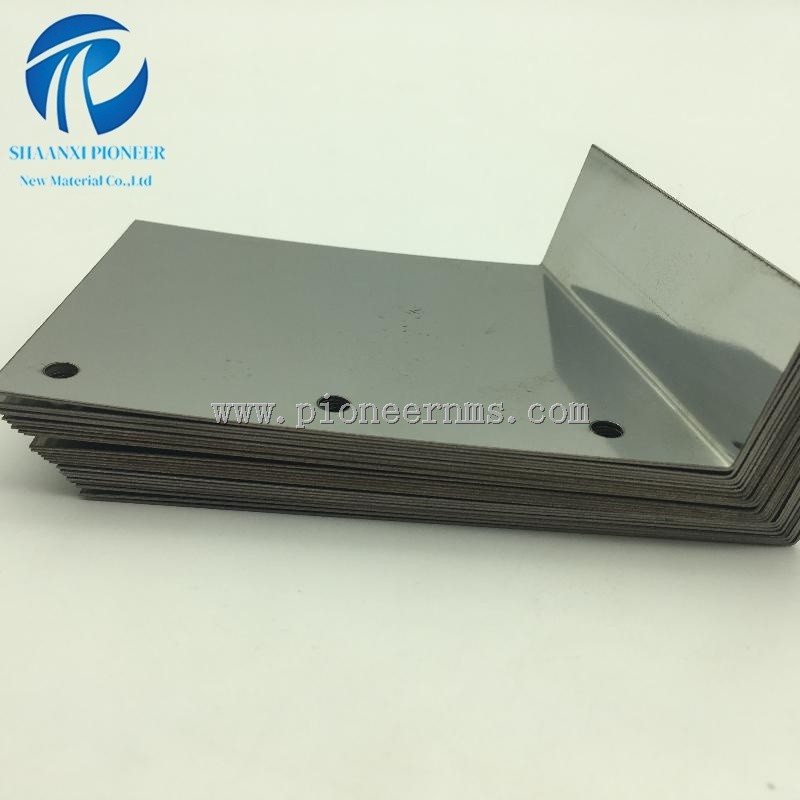

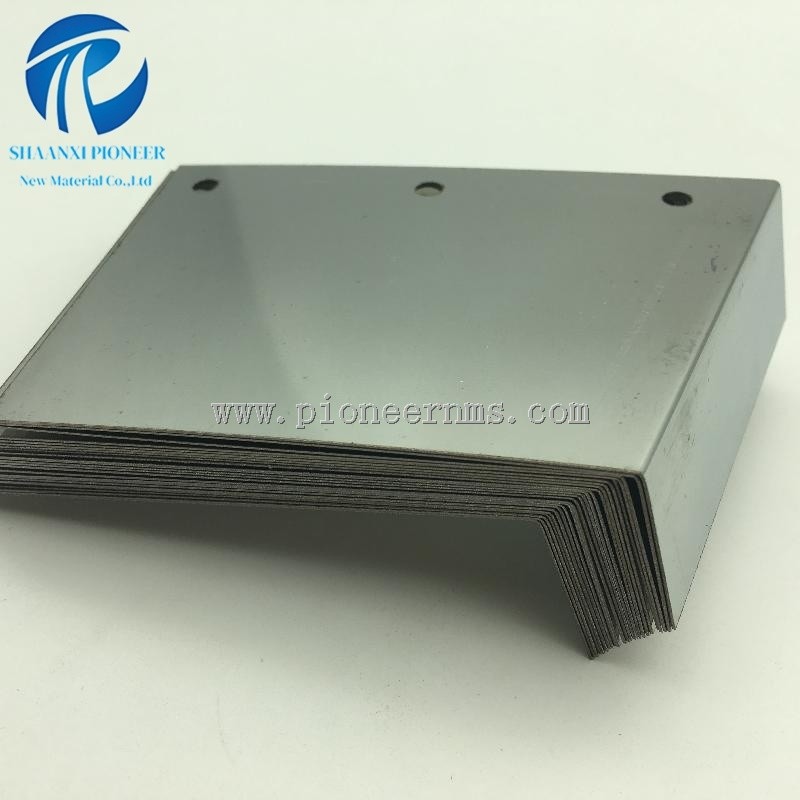

Industrial-Grade Tungsten Plate for Radiation Shielding

Short Description:

High-density tungsten plates (99.95% purity, 19.3g/cm³) for radiation shielding, aerospace, and industrial applications. Available in custom sizes (1-50mm thickness) with polished or milled finishes. Excellent high-temperature resistance (up to 2000°C). ...

Material Grade: Pure Tungsten (99.95%) / Tungsten Alloy (WNiFe)
Density: 19.3 g/cm³
Thickness Range: 0.1mm - 100mm
application: X-Ray Shielding Semiconductor Sputtering
Melting point: 3422 °C

Send email to us

Product Details

Product Tags

Industrial-Grade Tungsten Plate for Radiation Shielding

Key Features:

✔ExceptioDensity nal- 19.3 g/cm³ for superior radiation shielding

✔Extreme Heat Resistance- Withstands 3400°C melting point

✔Precision Tolerances- ±0.05mm (Standard), ±0.02mm (Precision Grade)

✔Surface Options- Mirror polish (Ra<0.4μm) or ground finish

Grade:

GB grade	W	Mo	Ni
W1	99.95%	0.01	0.003
WAL1、WAL2	99.95%	0.01	0.005
REMARKS: IMPURITIES ACCORDING TO GB/T 3875-2006

Specification:

L (Tolerance)	W(Tolerance)	T(Tolerance)	surface
500~600mm	10~500mm	0.05~50mm	Raw, Turned, polished

Thinckness	Tolerance	Width	Tolerance	Length	Tolerance	Condition
＜0.2	±0.02	10~150	±2	500	±2	Cold rolling
0.3	±0.03	10~250	±2	500	±2
0.4	±0.04	10~250	±2	500	±2
0.5	±0.05	10~300	±2	500	±2
0.8	±0.07	10~300	±0.5	500	±0.5
1.0	±0.08	10~300	±0.5	600	±0.5
1.5	±0.12	10~400	±0.5	600	±0.5
2.0	±0.12	10~500	±0.5	700	±0.5
3.0	±0.20	10~500	±0.5	600	±0.5	hot rolling
4.0	±0.30	10~500	±0.5	600	±0.5
≥5.0	±0.40%	10~550	±0.5	600	±0.5

Applications Section:

Ideal for Demanding Industries:
1. Medical - Radiation shielding for CT/X-ray equipment
2. Semiconductor - High-purity sputtering targets
3. Aerospace - Rocket nozzle heat shields
4. Energy - Fusion reactor first wall materials
