Molybdenum Rods for Semiconductor Furnace Components & Sputtering Targets
Molybdenum Rods for Semiconductor Furnace Components & Sputtering Targets

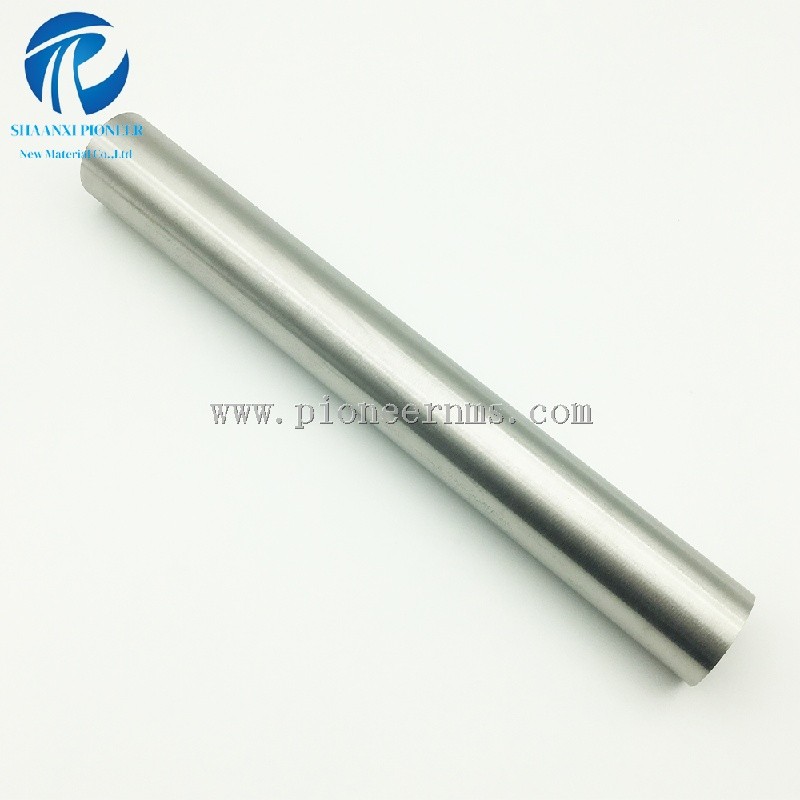

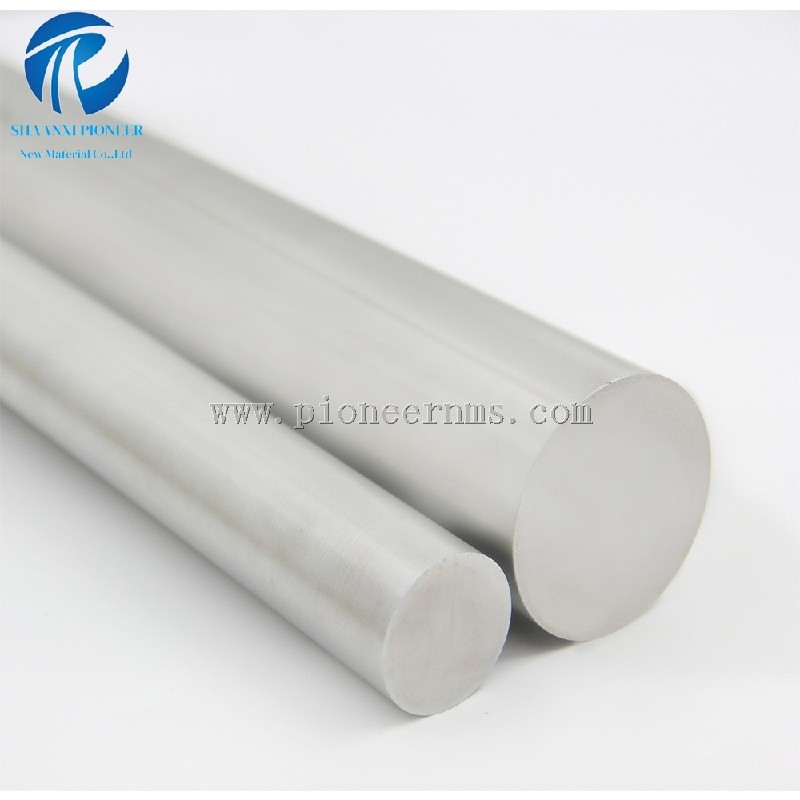

Shaanxi Pioneer premium molybdenum bars (99.95% pure) deliver unmatched performance in high-heat environments. Manufactured to exacting standards, these rods combine exceptional thermal resistance (2623°C melting point) with superior mechanical strength for critical industrial applications.
Key Advantages
✓ Extreme Heat Resistance - Maintains structural integrity at temperatures up to 2000°C
✓ Low Thermal Expansion - Coefficient of 4.8×10⁻⁶/K (20-1000°C)
✓ Vacuum-Compatible - Ultra-low outgassing rates (<10⁻⁶ Torr)
✓ Custom Fabrication - Available in turned, centerless ground, or threaded configurations
Technical Specifications
|
Parameter |
Specification |
|
Material Grade |
99.95% Mo, TZM, MoLa Alloys |
|
Diameter Range |
Ø5mm - Ø100mm |
|
Length |
Up to 3000mm (Customizable) |
|
Density |
10.2 g/cm³ |
|
Surface Finish |
Ground, Polished, or As-Sintered |
Industrial Applications
1. Semiconductor Manufacturing
• Heating elements for diffusion furnaces
• Wafer boat supports in CVD reactors
2. Aerospace & Defense
• Rocket nozzle throat inserts
• Hypersonic vehicle thermal shields
3. Energy Sector
• Sputtering target backings for thin-film solar
• Nuclear reactor control rod components
4. Glass & Metallurgy
• Electrodes for glass melting furnaces
• High-temperature thermocouple sheaths
