Molybdenum Shield

The molybdenum shield is a critical high-temperature component used in vacuum furnaces, controlled-atmosphere furnaces, and crystal growth furnaces. It is primarily designed for thermal radiation reflection, heat insulation, and temperature field stabilization in extreme operating environments.

Thanks to molybdenum’s high melting point (2620°C), low vapor pressure, and excellent high-temperature strength, molybdenum shields maintain stable performance where conventional metallic materials fail.

Main Functions

Thermal Radiation Shielding

Molybdenum shields reflect radiant heat back into the hot zone, helping to optimize temperature distribution and reduce unnecessary heat loss.

Thermal Insulation

As part of the furnace heat field system, molybdenum shields improve energy efficiency and contribute to more stable and uniform heating conditions.

Process Stability

By minimizing temperature fluctuations and suppressing contamination from volatile materials, molybdenum shields help ensure consistent process results and extended component service life.

Typical Applications

• Vacuum heat treatment furnaces

• Vacuum sintering and brazing furnaces

• Sapphire and single crystal growth furnaces

• High-temperature MIM / PM sintering equipment

• Furnace hot zone insulation systems

Material & Design Options

• Material: High-purity molybdenum (Mo ≥ 99.95%)

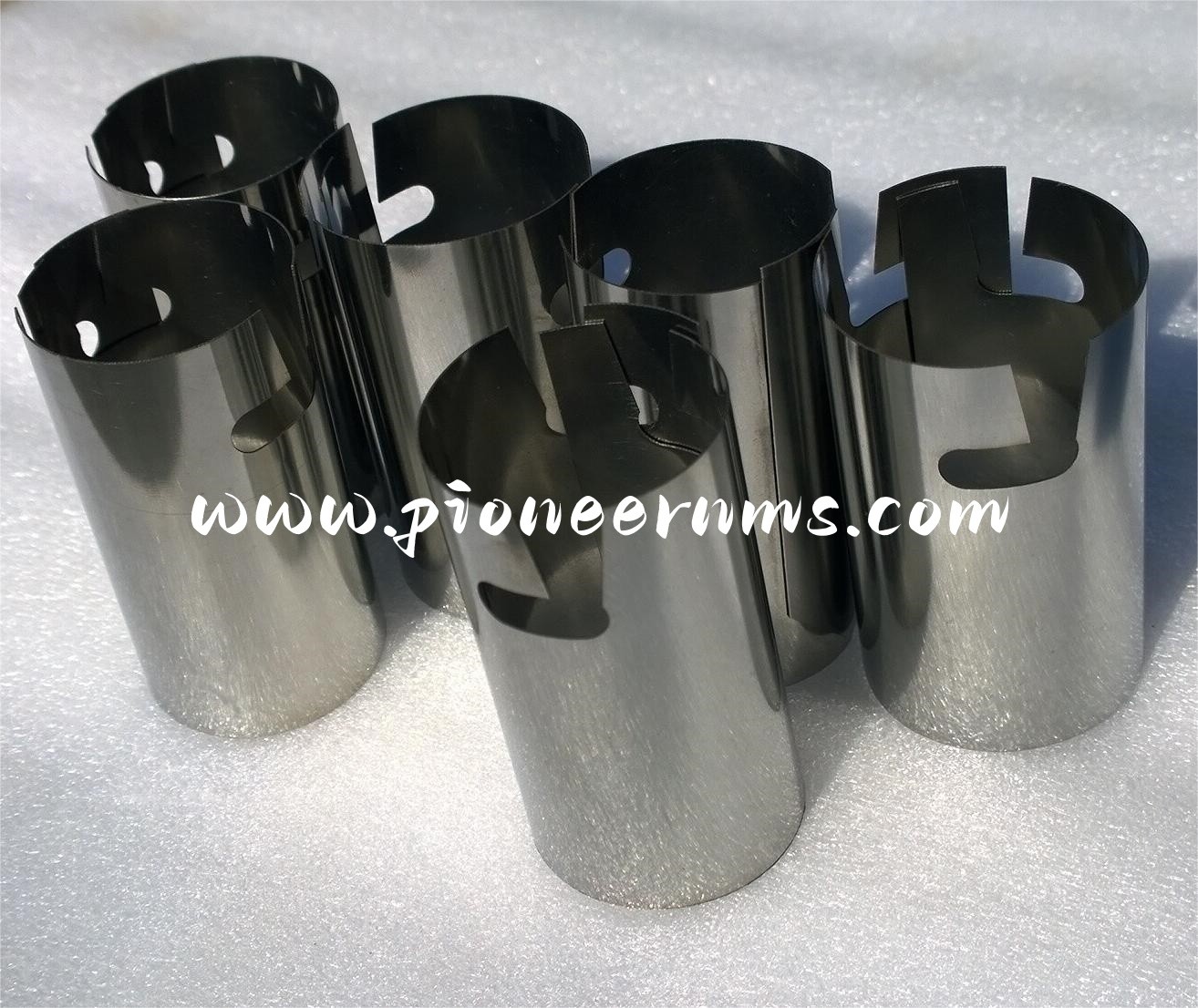

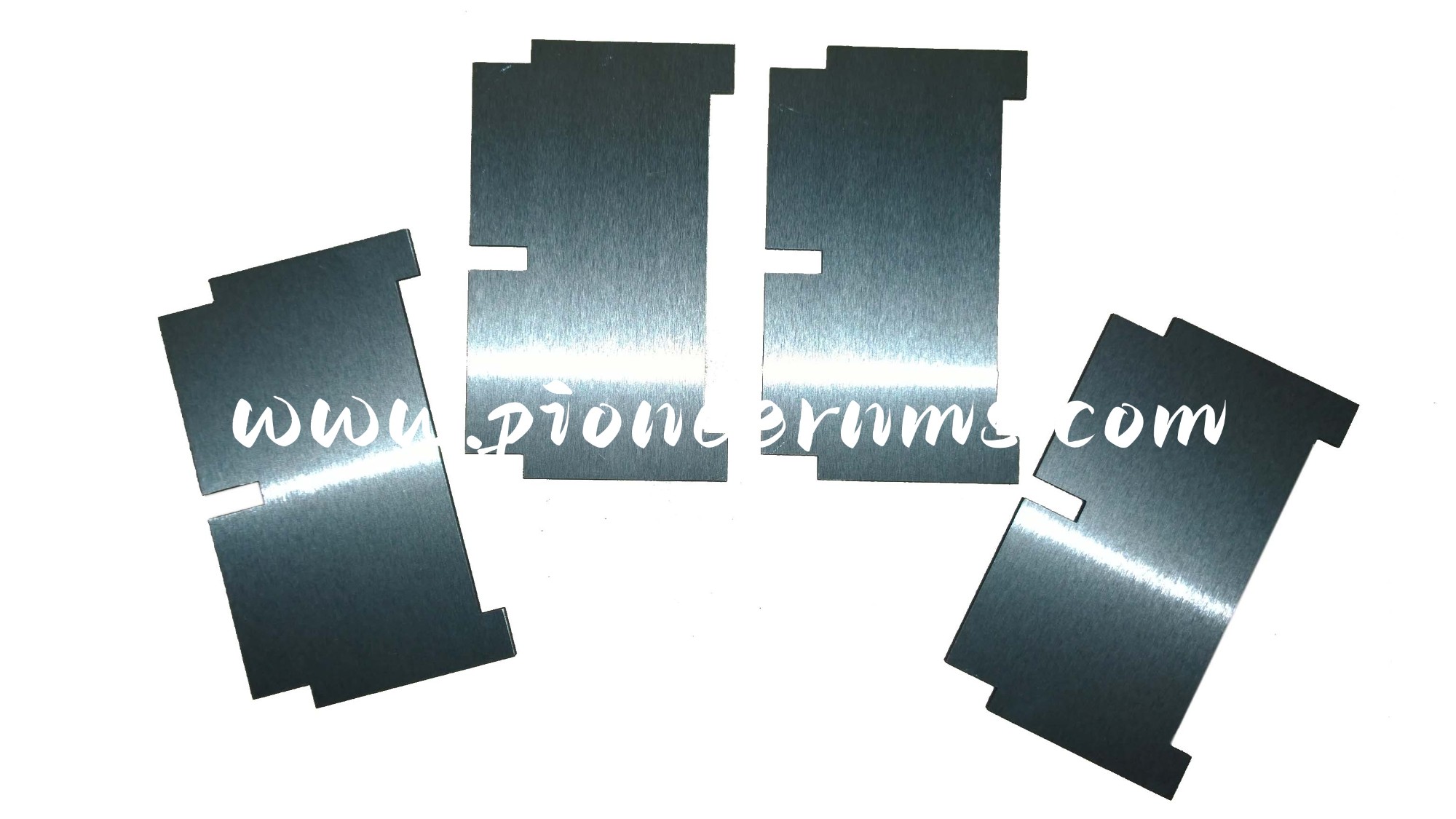

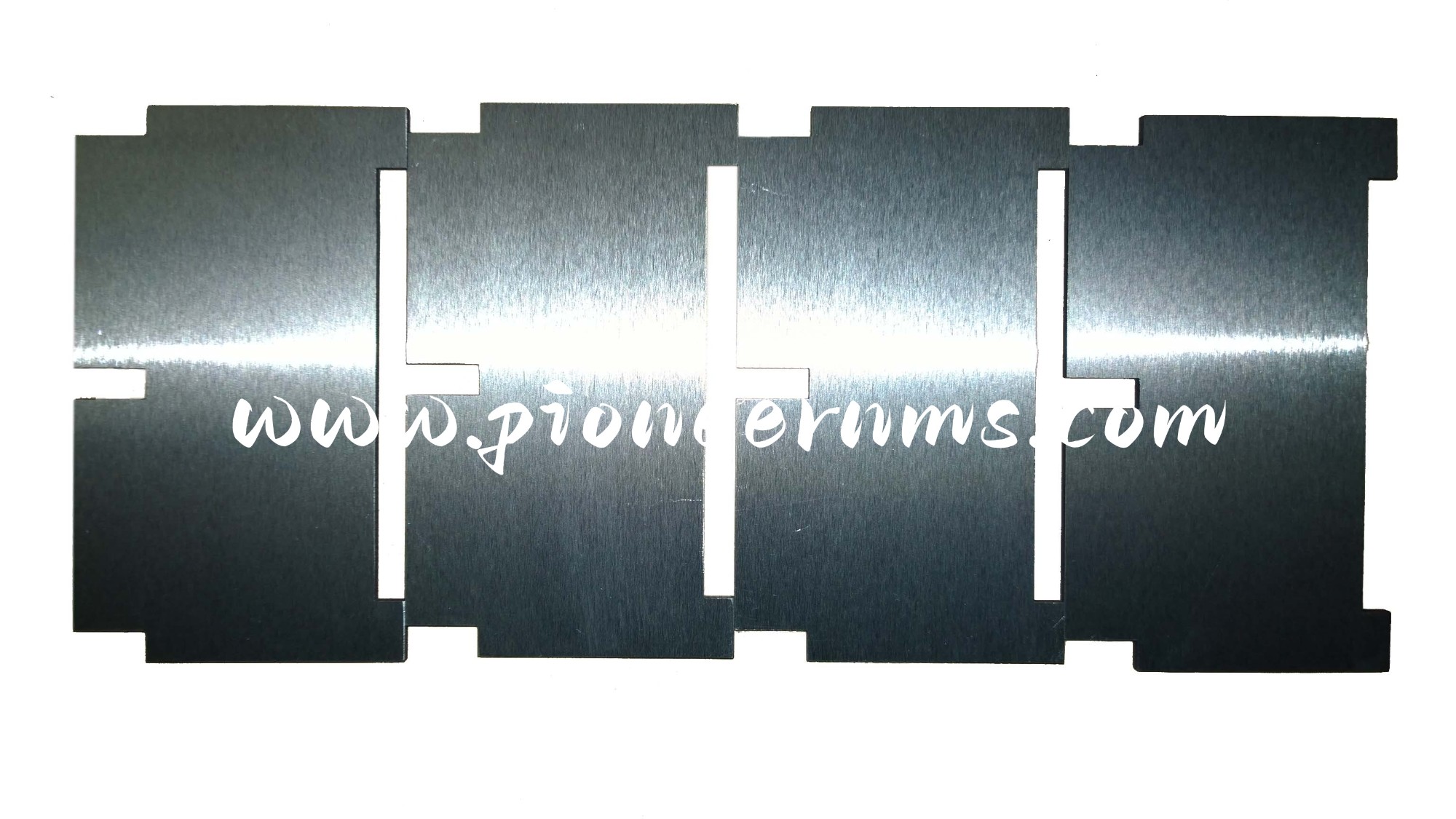

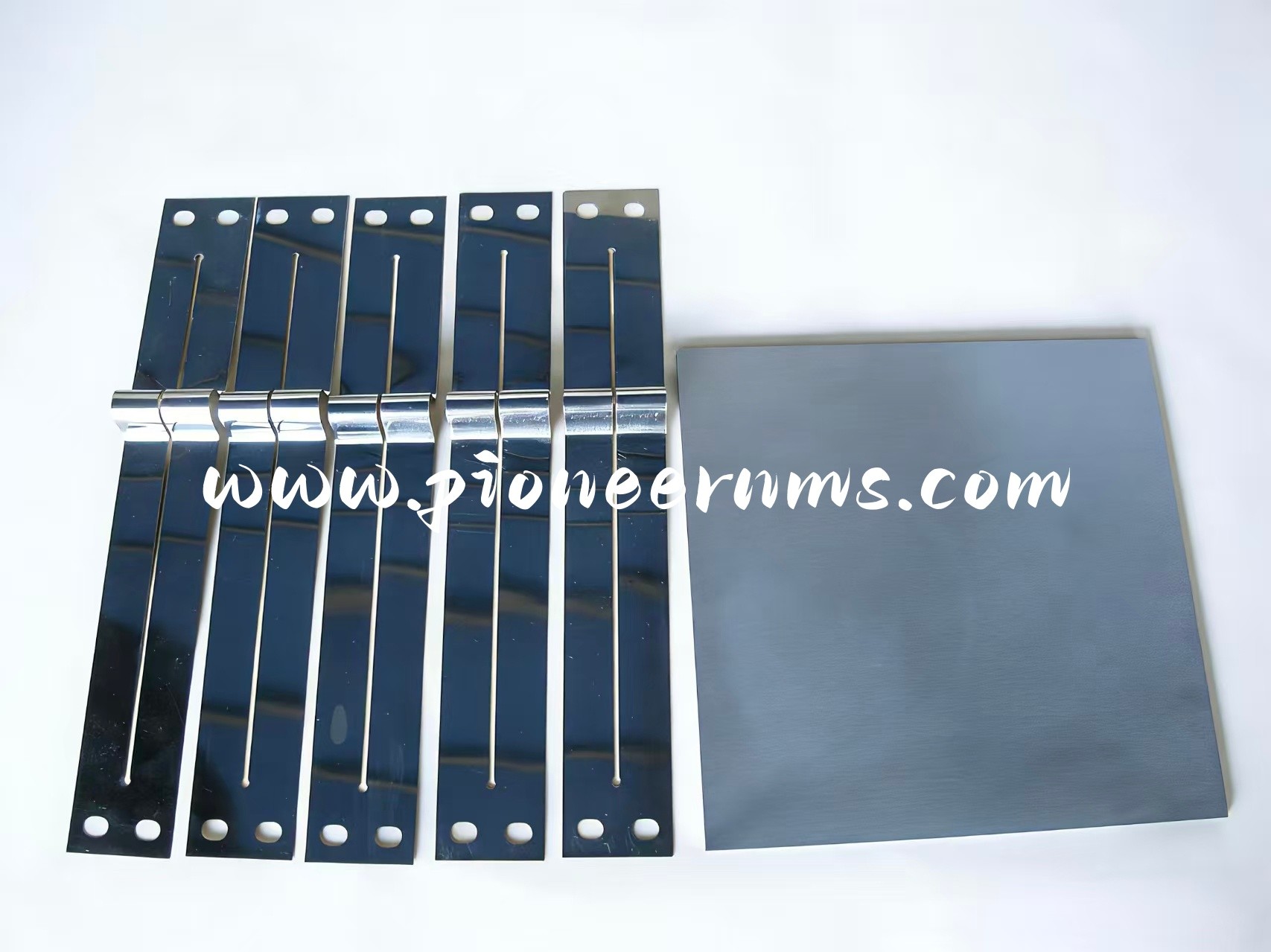

• Structure: Plates, cylindrical shields, multi-layer assemblies

• Operating environment: Vacuum or inert atmosphere

• Processing: Precision cutting, forming, welding, machining

• Design: Customized according to furnace structure and heat field requirements

Why Choose Our Molybdenum Shields

• Excellent dimensional stability at high temperatures

• Proven experience in vacuum furnace molybdenum components

• Custom engineering support for complex heat field designs

• Reliable quality for long-term furnace operation

Inquiry & Custom Solutions

Please provide your furnace type, operating temperature, dimensions, and drawings, and we will recommend the most suitable molybdenum shield solution for your application.
